ProteC QuiCk-fit® EPN 510

Sealing O-Rings


QuiCk-fit® EPN 510

Sealing O-Rings


YOUR QUICK-FIT® ADVANTAGE:   Best Price in the Market

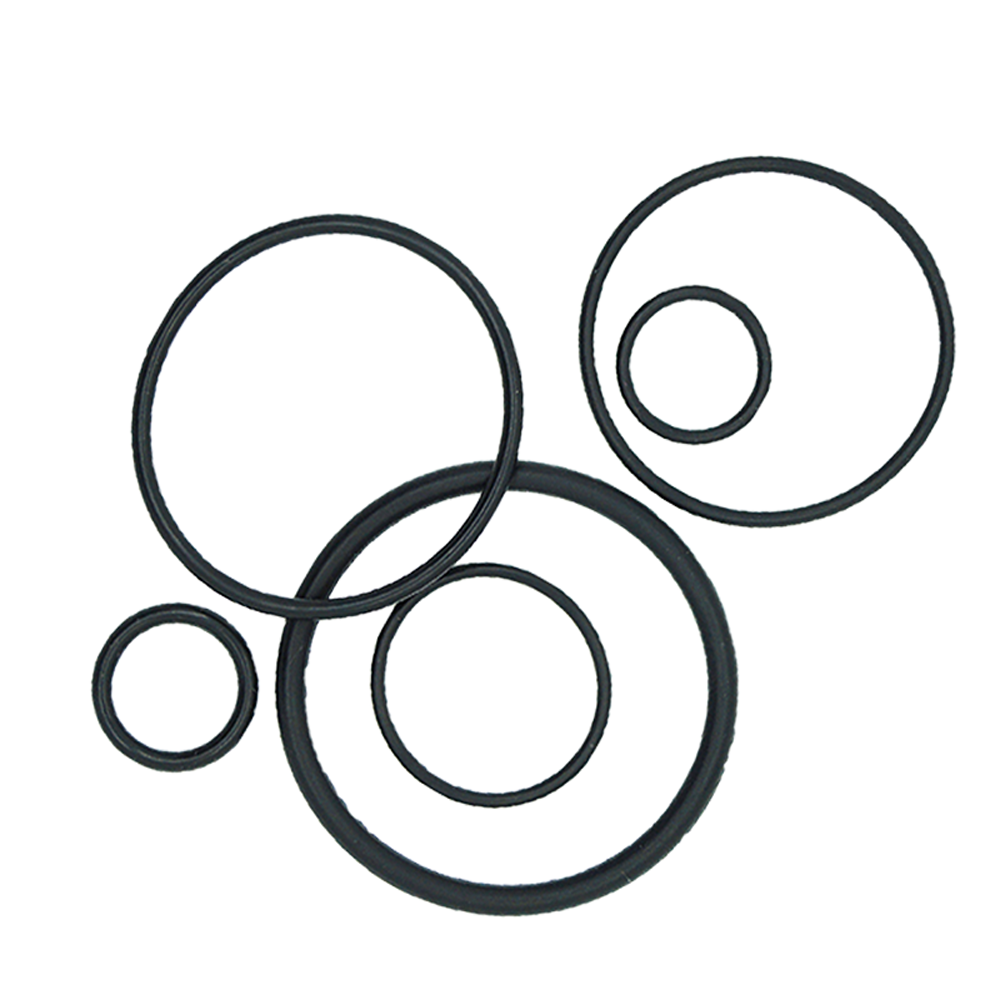

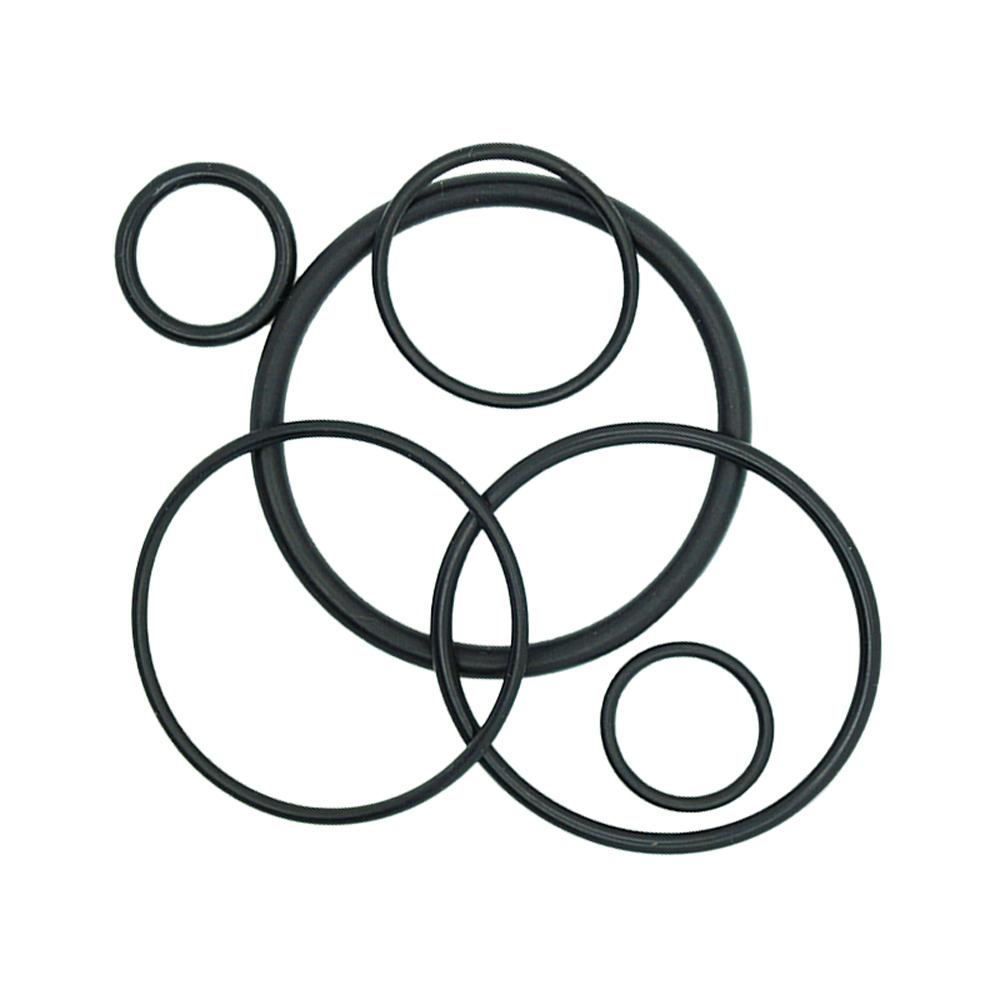

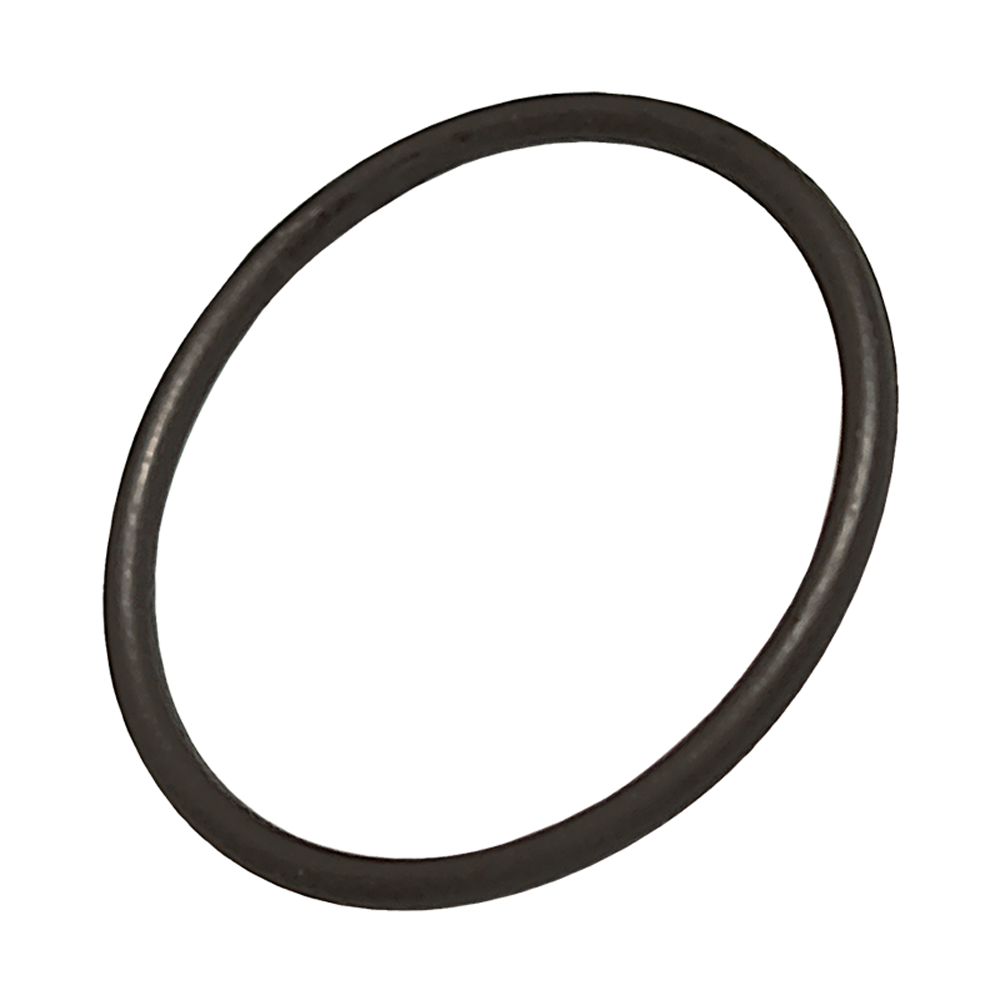

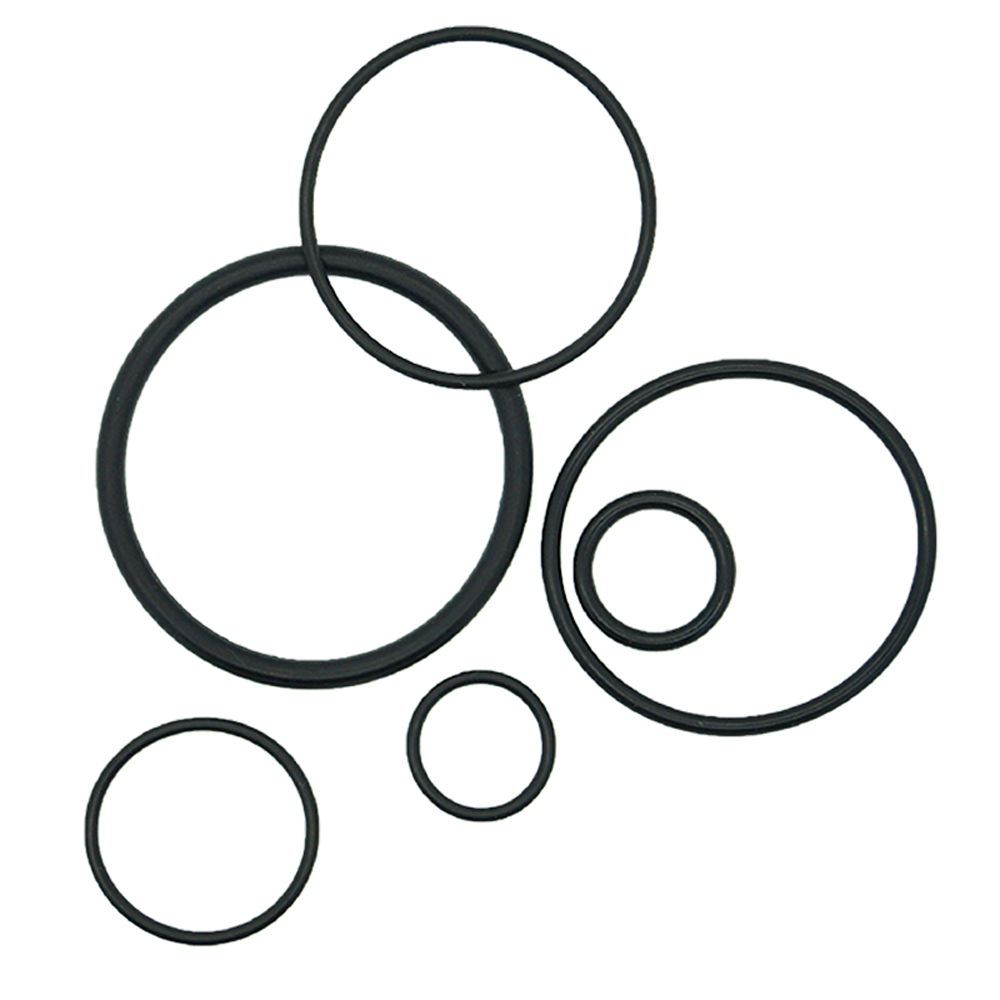

These O-Rings are designed for use with our Quick-Fit range of Cable Glands, enabling them to meet protection rating IP68 and to seal against oil, dust and water.

Std. Color: black
Material: Buna N

PROTEC QUICK-FIT EPN 510

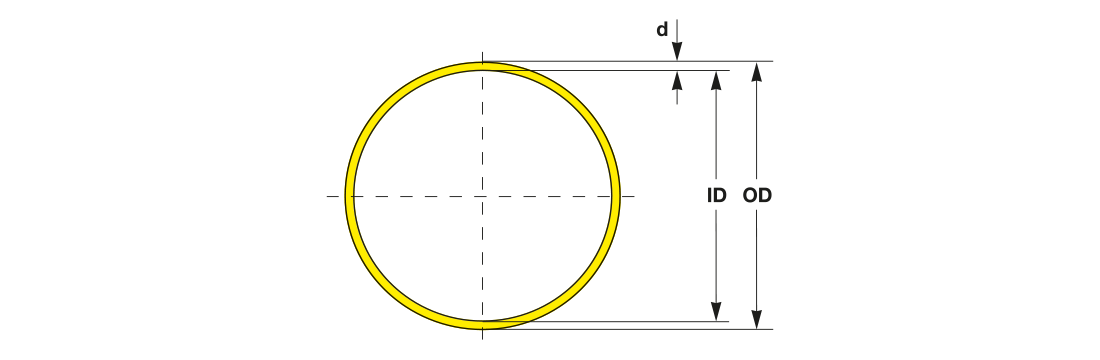

Thread OG ID d Reference No. Bookmark
  Metric
M 12 12.0   9.0 1.5 EPN 510/   9x1.5 / M 12
M 16 17.0 14.0 1.5 EPN 510/ 14x1.5 / M 16
M 20 21.0 18.0 1.5 EPN 510/ 18x1.5 / M 20
M 25 26.0 23.0 1.5 EPN 510/ 23x1.5 / M 25
M 32 32.0 28.0 2.0 EPN 510/ 28x2.0 / M 32
M 40 40.0 36.0 2.0 EPN 510/ 36x2.0 / M 40
M 50 50.0 46.0 2.0 EPN 510/ 46x2.0 / M 50
M 63 61.0 57.0 2.0 EPN 510/ 57x2.0 / M 63
  PG
PG   7 13.0 10.0 1.5 EPN 510/ 10x1.5 / PG   7
PG   9 16.0 13.0 1.5 EPN 510/ 13x1.5 / PG   9
PG 11 19.0 16.0 1.5 EPN 510/ 16x1.5 / PG 11
PG 13.5 21.0 18.0 1.5 EPN 510/ 18x1.5 / PG 13.5
PG 16 23.0 20.0 1.5 EPN 510/ 20x1.5 / PG 16
PG 21 30.0 26.0 2.0 EPN 510/ 26x2.0 / PG 21
PG 29 38.0 34.0 2.0 EPN 510/ 34x2.0 / PG 29
PG 36 48.0 44.0 2.0 EPN 510/ 44x2.0 / PG 36
PG 42 54.0 50.0 2.0 EPN 510/ 50x2.0 / PG 42
PG 48 59.0 55.0 2.0 EPN 510/ 55x2.0 / PG 48
Thread OG ID d Reference No.
  Metric
M 12 12.0   9.0 1.5 EPN 510/   9x1.5 / M 12
M 16 17.0 14.0 1.5 EPN 510/ 14x1.5 / M 16
M 20 21.0 18.0 1.5 EPN 510/ 18x1.5 / M 20
M 25 26.0 23.0 1.5 EPN 510/ 23x1.5 / M 25
M 32 32.0 28.0 2.0 EPN 510/ 28x2.0 / M 32
M 40 40.0 36.0 2.0 EPN 510/ 36x2.0 / M 40
M 50 50.0 46.0 2.0 EPN 510/ 46x2.0 / M 50
M 63 61.0 57.0 2.0 EPN 510/ 57x2.0 / M 63
  PG
PG   7 13.0 10.0 1.5 EPN 510/ 10x1.5 / PG   7
PG   9 16.0 13.0 1.5 EPN 510/ 13x1.5 / PG   9
PG 11 19.0 16.0 1.5 EPN 510/ 16x1.5 / PG 11
PG 13.5 21.0 18.0 1.5 EPN 510/ 18x1.5 / PG 13.5
PG 16 23.0 20.0 1.5 EPN 510/ 20x1.5 / PG 16
PG 21 30.0 26.0 2.0 EPN 510/ 26x2.0 / PG 21
PG 29 38.0 34.0 2.0 EPN 510/ 34x2.0 / PG 29
PG 36 48.0 44.0 2.0 EPN 510/ 44x2.0 / PG 36
PG 42 54.0 50.0 2.0 EPN 510/ 50x2.0 / PG 42
PG 48 59.0 55.0 2.0 EPN 510/ 55x2.0 / PG 48
  Metric
Thread
M 12

Ø external OG
12.0

Ø internal ID
9.0

Thickness d
1.5

Reference No. EPN 510/ 9x1.5 / M 12

Thread
M 16

Ø external OG
17.0

Ø internal ID
14.0

Thickness d
1.5

Reference No. EPN 510/ 14x1.5 / M 16

Thread
M 20

Ø external OG
21.0

Ø internal ID
18.0

Thickness d
1.5

Reference No. EPN 510/ 18x1.5 / M 20

Thread
M 25

Ø external OG
26.0

Ø internal ID
23.0

Thickness d
1.5

Reference No. EPN 510/ 23x1.5 / M 25

Thread
M 32

Ø external OG
32.0

Ø internal ID
28.0

Thickness d
2.0

Reference No. EPN 510/ 28x2.0 / M 32

Thread
M 40

Ø external OG
40.0

Ø internal ID
36.0

Thickness d
2.0

Reference No. EPN 510/ 36x2.0 / M 40

Thread
M 50

Ø external OG
50.0

Ø internal ID
46.0

Thickness d
2.0

Reference No. EPN 510/ 46x2.0 / M 50

Thread
M 63

Ø external OG
61.0

Ø internal ID
57.0

Thickness d
2.0

Reference No. EPN 510/ 57x2.0 / M 63

  PG
Thread
PG 7

Ø external OG
13.0

Ø internal ID
10.0

Thickness d
1.5

Reference No. EPN 510/ 10x1.5 / PG 7

Thread
PG 9

Ø external OG
16.0

Ø internal ID
13.0

Thickness d
1.5

Reference No. EPN 510/ 13x1.5 / PG 9

Thread
PG 11

Ø external OG
19.0

Ø internal ID
16.0

Thickness d
1.5

Reference No. EPN 510/ 16x1.5 / PG 11

Thread
PG 13.5

Ø external OG
21.0

Ø internal ID
18.0

Thickness d
1.5

Reference No. EPN 510/ 18x1.5 / PG 13.5

Thread
PG 16

Ø external OG
23.0

Ø internal ID
20.0

Thickness d
1.5

Reference No. EPN 510/ 20x1.5 / PG 16

Thread
PG 21

Ø external OG
30.0

Ø internal ID
26.0

Thickness d
2.0

Reference No. EPN 510/ 26x2.0 / PG 21

Thread
PG 29

Ø external OG
38.0

Ø internal ID
34.0

Thickness d
2.0

Reference No. EPN 510/ 34x2.0 / PG 29

Thread
PG 36

Ø external OG
48.0

Ø internal ID
44.0

Thickness d
2.0

Reference No. EPN 510/ 44x2.0 / PG 36

Thread
PG 42

Ø external OG
54.0

Ø internal ID
50.0

Thickness d
2.0

Reference No. EPN 510/ 50x2.0 / PG 42

Thread
PG 48

Ø external OG
59.0

Ø internal ID
55.0

Thickness d
2.0

Reference No. EPN 510/ 55x2.0 / PG 48

PROTEC products and specifications are subject to improvement and change without notice.

QUICK-FIT® EPN 510 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.
