YOUR CAPTOP® ADVANTAGE: Best Price in the Market

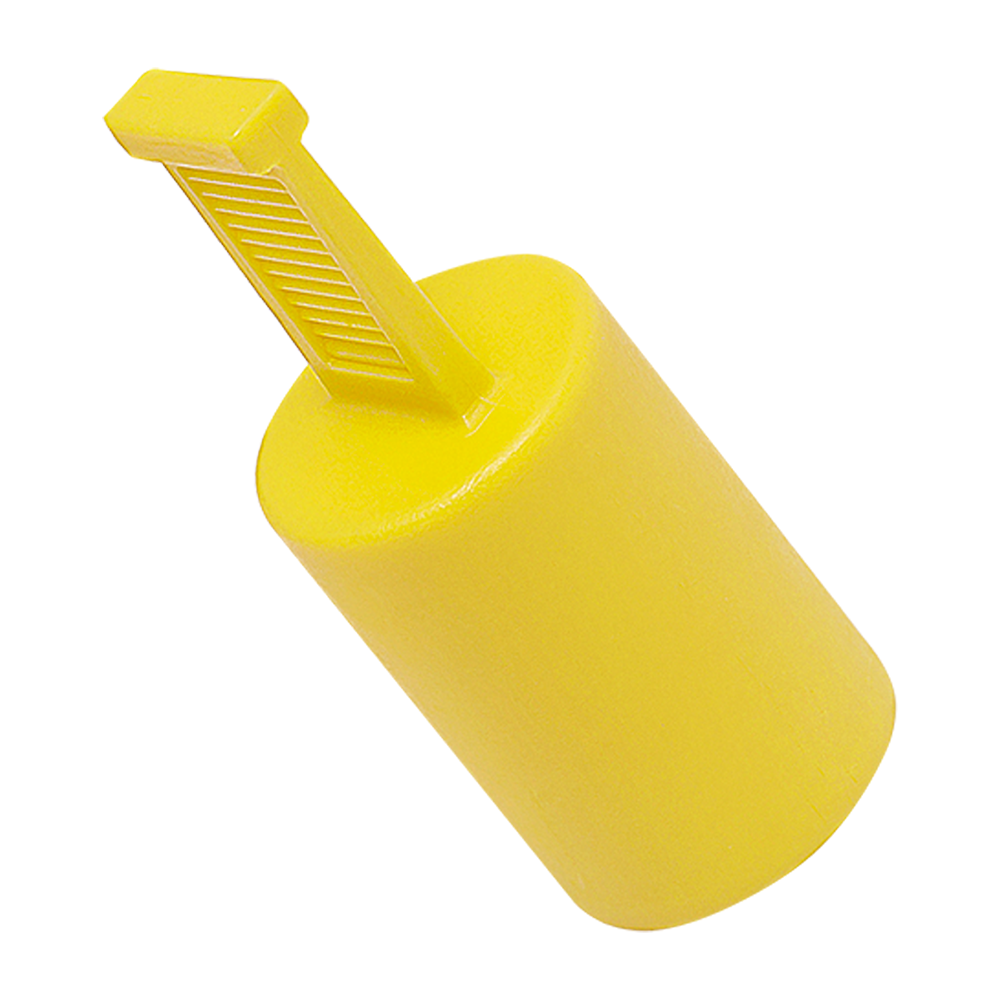

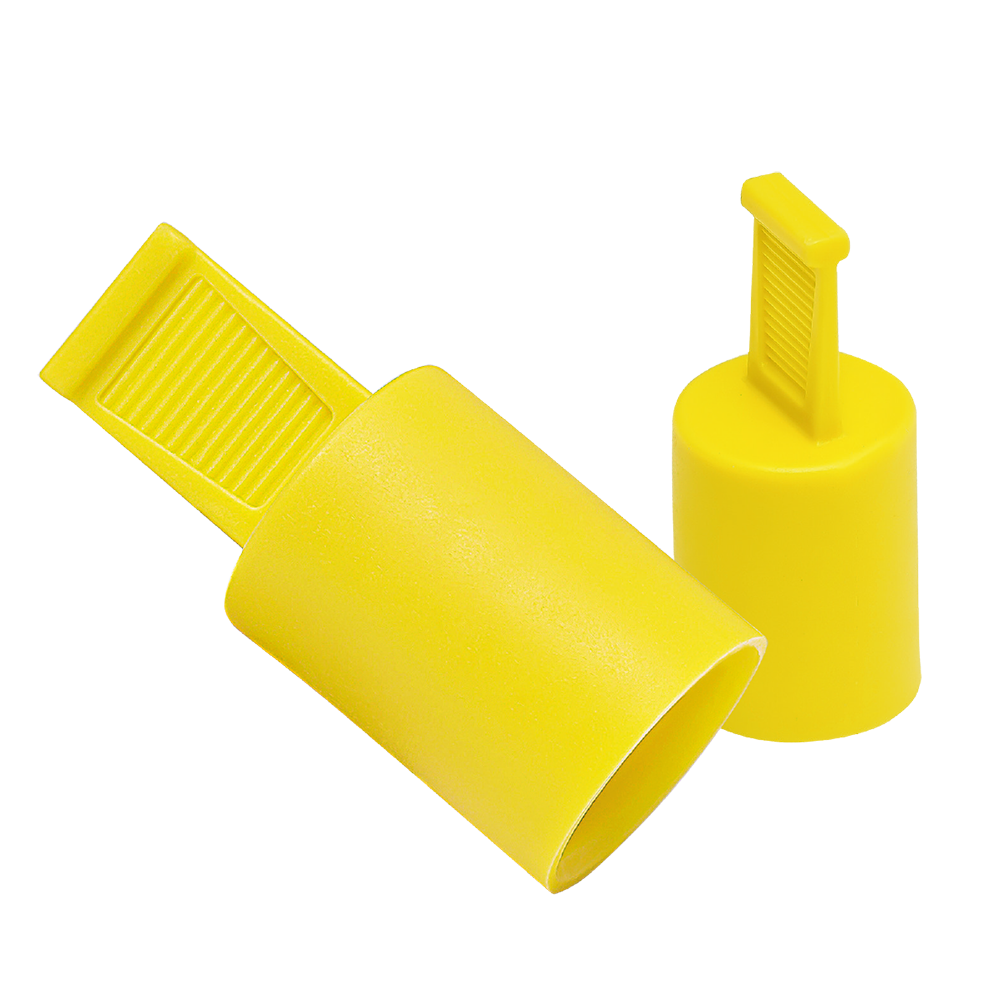

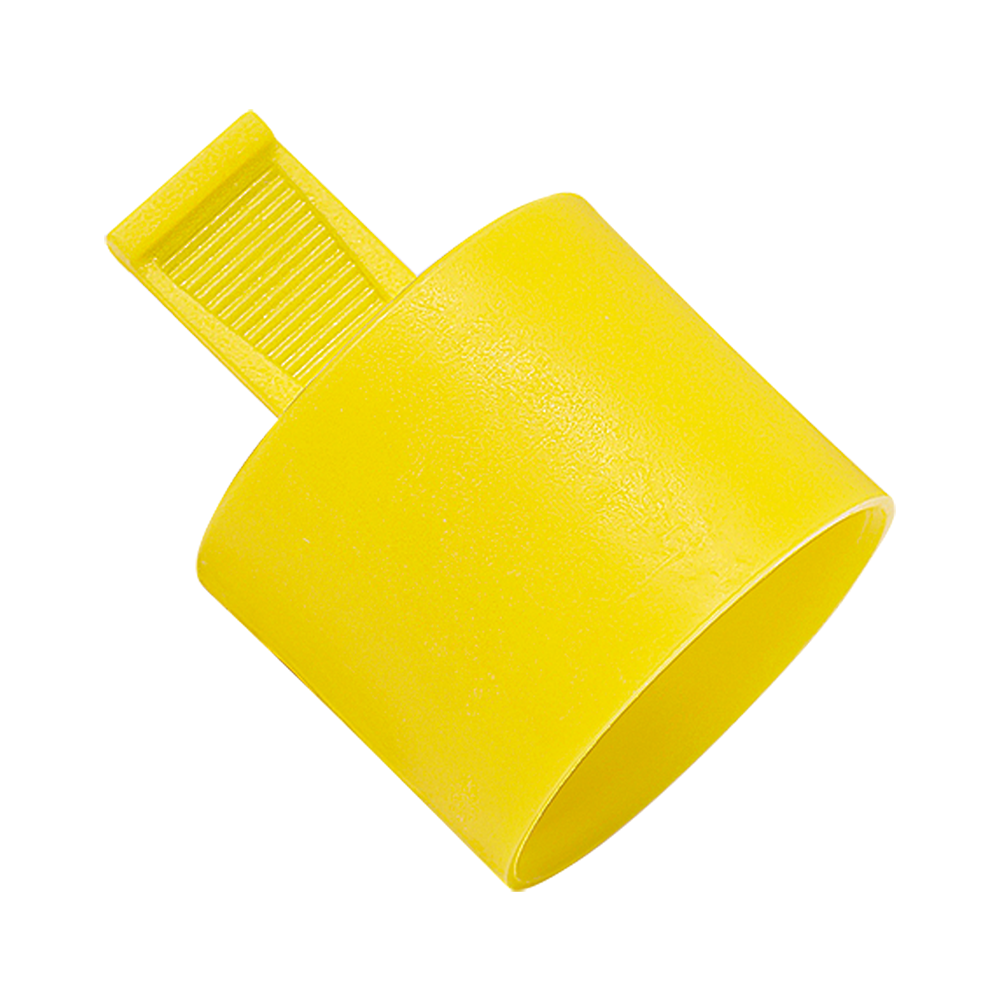

These Push-Fit Caps provide good
tensile strength, toughness and
increased flexibility between +1 mm
and +2.5 mm in diameter.
They can be used to cap threaded
and non-threaded applications and
are ideal for use on hydraulic hoses
or pipe ends ftted with pressure-sensitive external O-rings.
The internal lip ensures a form and
clean fit and prevents ingress of dirt
and contaminants.
Large Pull-Tab allows easy removal.
Std. Color: yellow
Material: EVA (Ethylenvinylacetate)

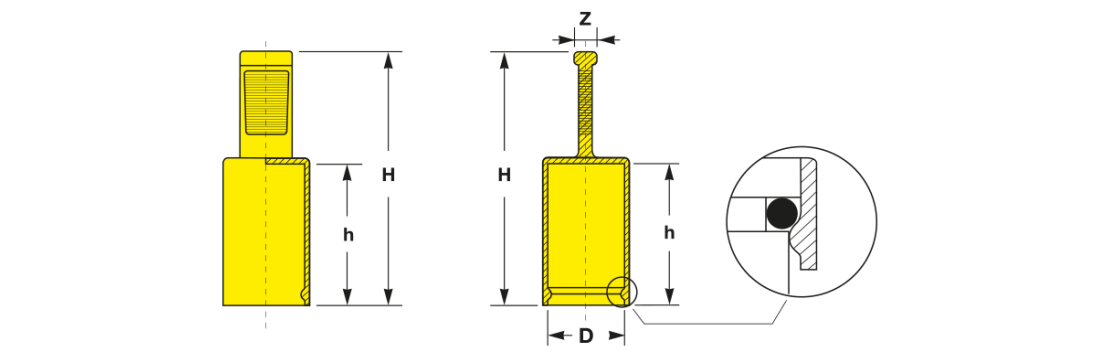

| External application | d | D | h | H | L | Z | Reference No. | Bookmark |
|---|
| 4 | 4.0 | 5.0 | 20.0 | 37.0 | 15.1 | 3.2 | EP 210 ZL 4 x 20 | |
|---|---|---|---|---|---|---|---|---|
| 5 | 4.8 | 5.2 | 20.0 | 37.0 | 15.1 | 3.2 | EP 210 ZL 5 x 20 | |
| 6 | 6.0 | 7.5 | 20.0 | 37.0 | 15.1 | 3.2 | EP 210 ZL 6 x 20 | |
| 8 | 8.0 | 8.4 | 20.0 | 37.0 | 15.1 | 3.2 | EP 210 ZL 8 x 20 | |
| 9 | 9.0 | 10.5 | 20.0 | 37.0 | 15.1 | 3.3 | EP 210 ZL 9 x 20 | |
| 10 | 10.0 | 10.5 | 20.0 | 36.3 | 15.1 | 3.2 | EP 210 ZL 10 x 20 | |
| 11 | 11.0 | 11.3 | 20.0 | 37.0 | 15.1 | 3.0 | EP 210 ZL 11 x 20 | |
| 12 | 12.0 | 12.5 | 20.0 | 37.0 | 15.1 | 3.2 | EP 210 ZL 12 x 20 | |
| 13 | 13.0 | 13.4 | 20.0 | 36.5 | 15.0 | 3.3 | EP 210 ZL 13 x 20 | |
| 14 | 14.0 | 14.5 | 20.0 | 36.5 | 15.0 | 3.3 | EP 210 ZL 14 x 20 | |
| 15 | 15.0 | 15.5 | 20.0 | 36.4 | 15.0 | 3.3 | EP 210 ZL 15 x 20 | |
| 16 | 16.0 | 16.3 | 20.0 | 36.3 | 15.0 | 3.3 | EP 210 ZL 16 x 20 | |
| 18 | 18.0 | 18.3 | 20.0 | 36.1 | 15.0 | 3.1 | EP 210 ZL 18 x 20 | |
| 20 | 20.0 | 20.5 | 20.0 | 37.0 | 15.0 | 3.3 | EP 210 ZL 20 x 20 | |
| 20 | 20.0 | 20.0 | 30.0 | 47.0 | 15.0 | 3.3 | EP 210 ZL 20 x 30 | |
| 24 | 23.7 | 24.0 | 20.0 | 36.4 | 15.0 | 3.3 | EP 210 ZL 24 x 20 |
| AD | d | D | h | H | L | Z | Reference No. |
|---|
| 4 | 4.0 | 5.0 | 20.0 | 37.0 | 15.1 | 3.2 | EP 210 ZL 4 x 20 | |
|---|---|---|---|---|---|---|---|---|
| 5 | 4.8 | 5.2 | 20.0 | 37.0 | 15.1 | 3.2 | EP 210 ZL 5 x 20 | |
| 6 | 6.0 | 7.5 | 20.0 | 37.0 | 15.1 | 3.2 | EP 210 ZL 6 x 20 | |
| 8 | 8.0 | 8.4 | 20.0 | 37.0 | 15.1 | 3.2 | EP 210 ZL 8 x 20 | |
| 9 | 9.0 | 10.5 | 20.0 | 37.0 | 15.1 | 3.3 | EP 210 ZL 9 x 20 | |
| 10 | 10.0 | 10.5 | 20.0 | 36.3 | 15.1 | 3.2 | EP 210 ZL 10 x 20 | |
| 11 | 11.0 | 11.3 | 20.0 | 37.0 | 15.1 | 3.0 | EP 210 ZL 11 x 20 | |
| 12 | 12.0 | 12.5 | 20.0 | 37.0 | 15.1 | 3.2 | EP 210 ZL 12 x 20 | |
| 13 | 13.0 | 13.4 | 20.0 | 36.5 | 15.0 | 3.3 | EP 210 ZL 13 x 20 | |
| 14 | 14.0 | 14.5 | 20.0 | 36.5 | 15.0 | 3.3 | EP 210 ZL 14 x 20 | |
| 15 | 15.0 | 15.5 | 20.0 | 36.4 | 15.0 | 3.3 | EP 210 ZL 15 x 20 | |
| 16 | 16.0 | 16.3 | 20.0 | 36.3 | 15.0 | 3.3 | EP 210 ZL 16 x 20 | |
| 18 | 18.0 | 18.3 | 20.0 | 36.1 | 15.0 | 3.1 | EP 210 ZL 18 x 20 | |
| 20 | 20.0 | 20.5 | 20.0 | 37.0 | 15.0 | 3.3 | EP 210 ZL 20 x 20 | |
| 20 | 20.0 | 20.0 | 30.0 | 47.0 | 15.0 | 3.3 | EP 210 ZL 20 x 30 | |
| 24 | 23.7 | 24.0 | 20.0 | 36.4 | 15.0 | 3.3 | EP 210 ZL 24 x 20 |
PROTEC products and specifications are subject to improvement and change without notice.
CAPTOP® EP 210 Series development:
This series is constantly being expanded by us. Dimensions not listed may already be in production. Please contact us for more information.
CAPTOP® EP 210 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.
Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.
Cap threaded and non-threaded applications and are ideal for use on hydraulic hoses or pipe ends fitted with pressure-sensitive external O-rings.
These Push-Fit Caps provide good tensile strength, toughness and increased flexibility between +1 mm and +2.5 mm in diameter.
Ideal for working in confined space.
The internal lip ensures a firm and clean fit and
prevents ingress of dirt and contaminants.
Large Pull-Tab allows easy handling and quick removal.
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.
