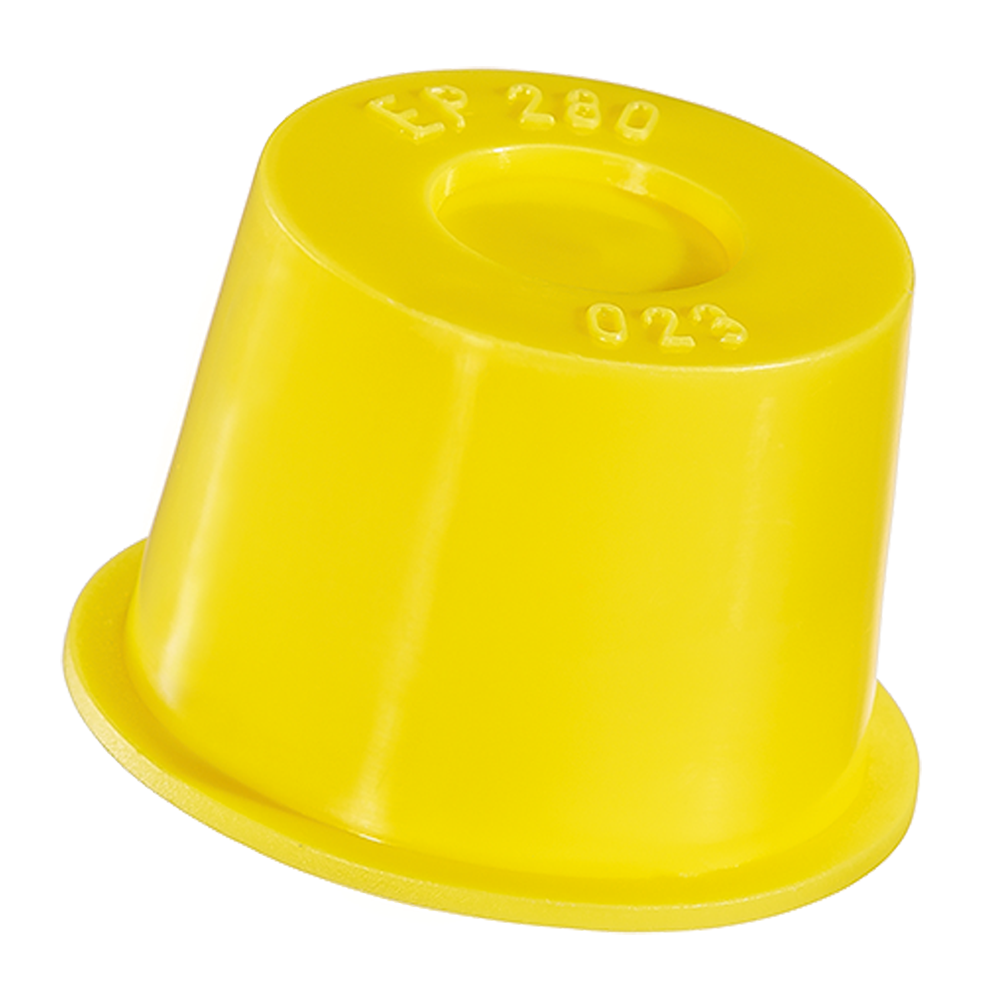

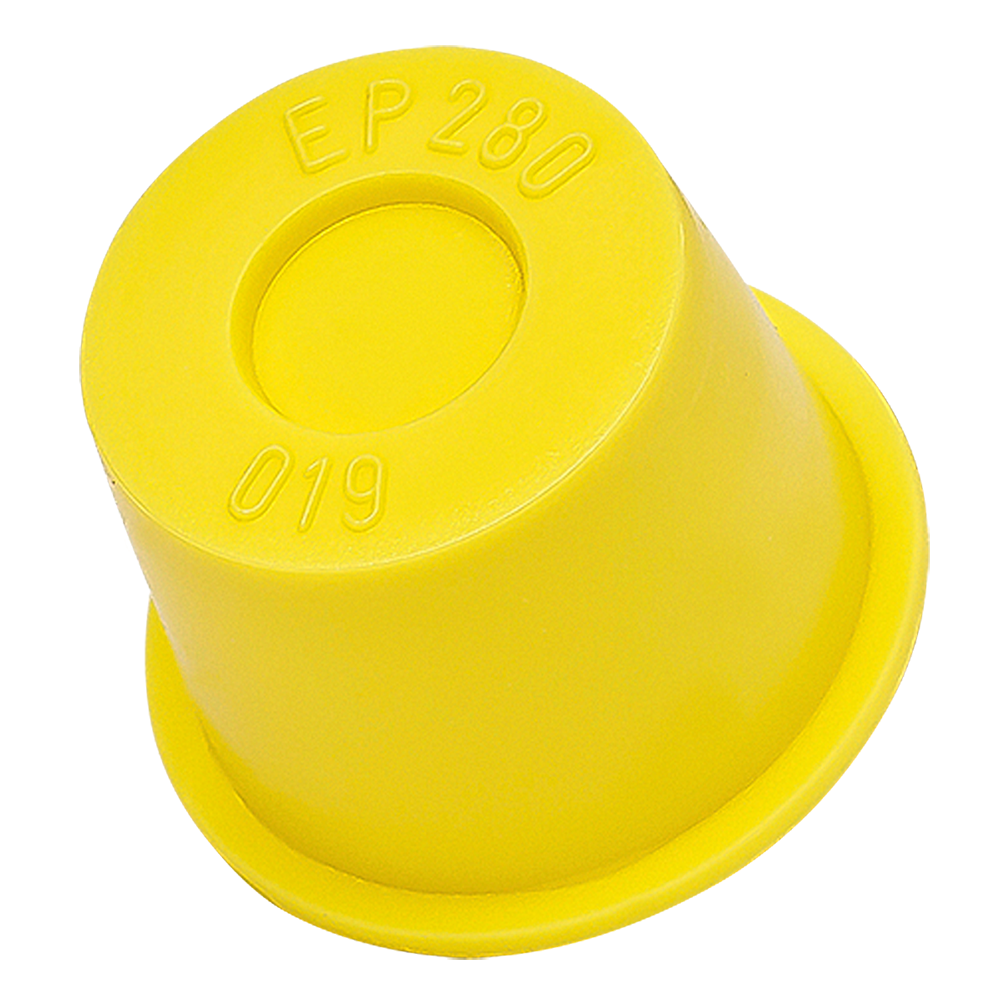

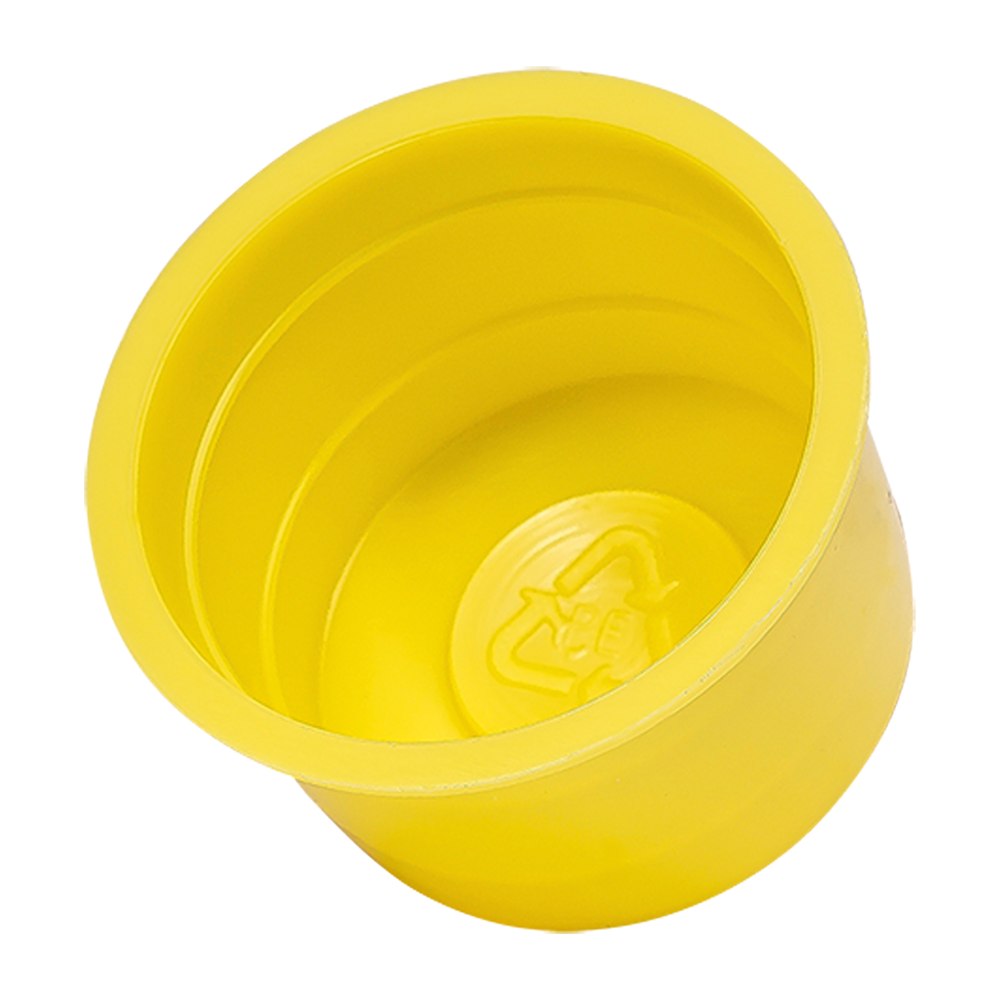

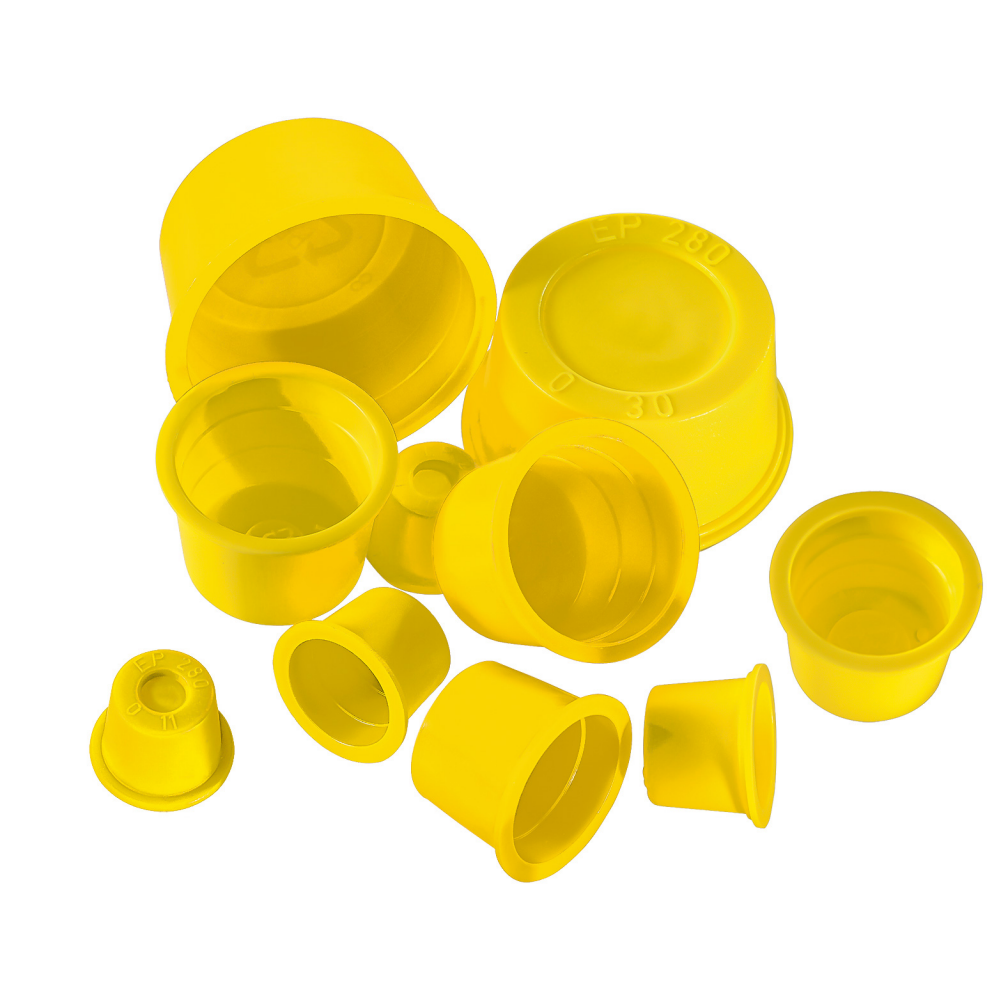

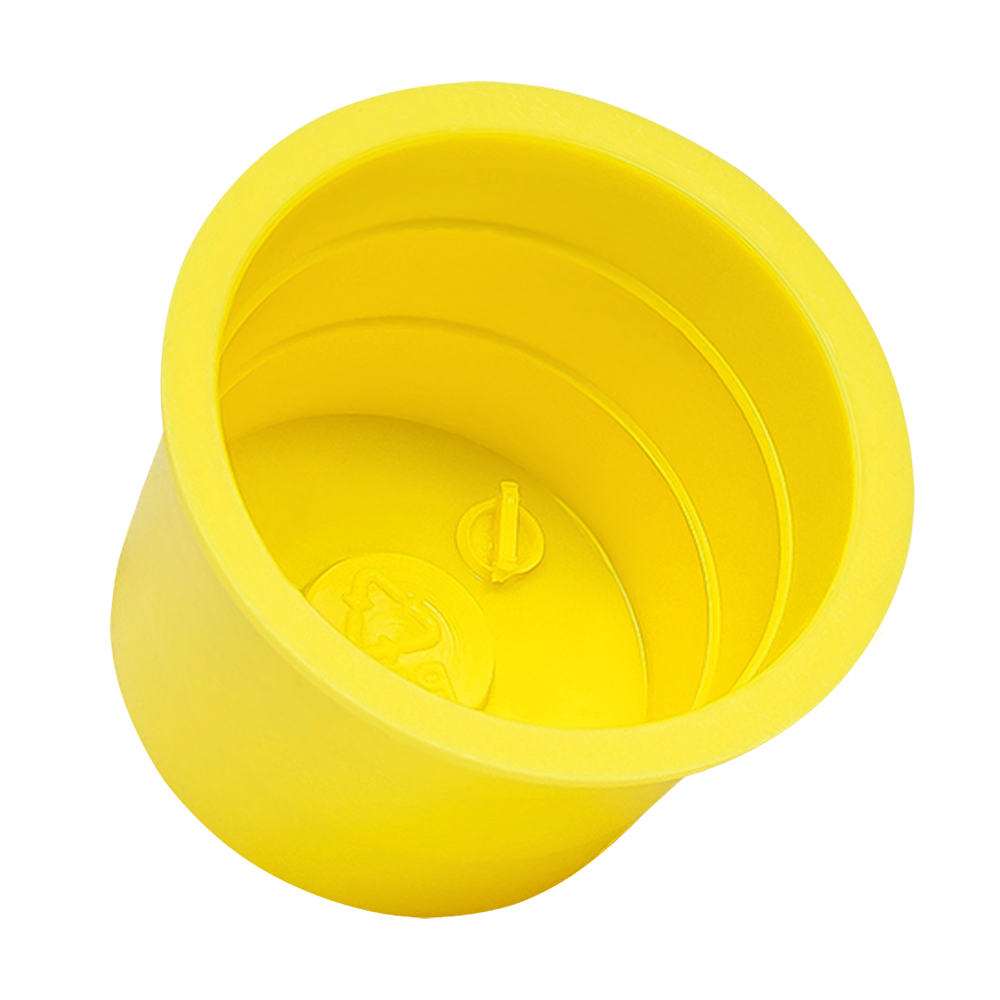

YOUR CAPTOP® ADVANTAGE: Best Price in the Market
Provide excellent protection from damage, dirt, moisture and corrosion during storage and transportation.
Low-cost.
Can be used as either a cap or plug.
Easy fitting and removal.
Std. Color: yellow
Material: LLD-PE, linear low density polyethylene

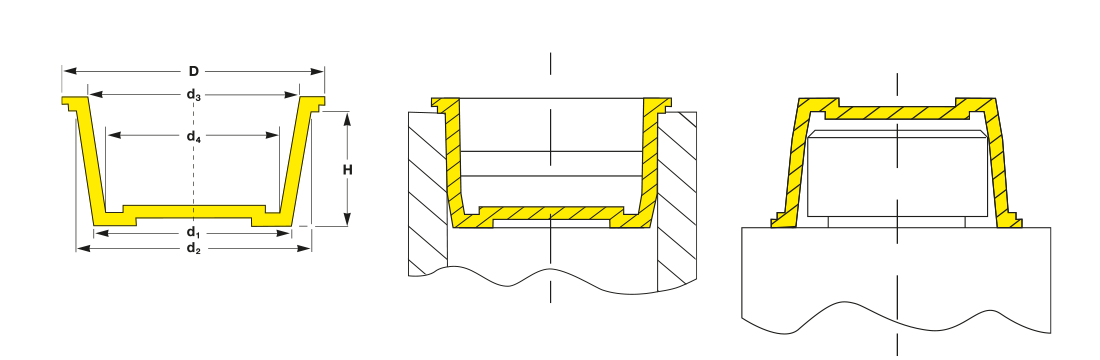

| d1 | d2 | d3 | d4 | D | H | Reference No. | Bookmark |
|---|
| 4.4 | 6.15 | 4.6 | 2.8 | 10.0 | 10.0 | EP 280 / O 1 | |
|---|---|---|---|---|---|---|---|
| 6.0 | 7.75 | 6.15 | 4.4 | 11.0 | 10.0 | EP 280 / O 2 | |
| 7.6 | 9.35 | 7.75 | 6.0 | 13.0 | 10.0 | EP 280 / O 3 | |
| 8.4 | 10.15 | 8.55 | 6.8 | 14.0 | 10.0 | EP 280 / O 4 | |
| 9.2 | 10.95 | 9.25 | 7.5 | 14.0 | 10.0 | EP 280 / O 5 | |
| 9.9 | 11.35 | 10.05 | 8.3 | 15.0 | 10.0 | EP 280 / O 6 | |
| 10.6 | 12.35 | 10.75 | 9.0 | 16.0 | 10.0 | EP 280 / O 7 | |
| 10.9 | 13.05 | 11.55 | 9.5 | 17.0 | 11.0 | EP 280 / O 8 | |
| 12.0 | 14.1 | 12.5 | 10.4 | 18.0 | 13.0 | EP 280 / O 9 | |
| 12.5 | 14.2 | 13.3 | 11.2 | 18.0 | 12.0 | EP 280 / O 10 | |
| 13.5 | 15.6 | 14.0 | 11.9 | 19.0 | 13.0 | EP 280 / O 11 | |
| 14.0 | 16.1 | 14.5 | 12.4 | 19.0 | 12.9 | EP 280 / O 12 | |
| 15.0 | 17.0 | 15.5 | 13.2 | 21.0 | 13.0 | EP 280 / O 13 | |
| 16.1 | 18.4 | 16.9 | 14.5 | 22.0 | 13.0 | EP 280 / O 14 | |
| 17.3 | 19.4 | 17.6 | 15.5 | 22.0 | 15.3 | EP 280 / O 15 | |
| 17.5 | 20.1 | 18.5 | 15.9 | 24.0 | 16.0 | EP 280 / O 16 | |
| 18.4 | 21.0 | 19.4 | 16.8 | 25.0 | 16.0 | EP 280 / O 17 | |
| 19.0 | 21.6 | 20.0 | 17.4 | 25.0 | 15.8 | EP 280 / O 18 | |
| 20.4 | 23.2 | 21.6 | 18.8 | 27.0 | 17.2 | EP 280 / O 19 | |
| 20.7 | 23.5 | 21.9 | 19.1 | 28.0 | 17.0 | EP 280 / O 20 | |
| 22.0 | 25.1 | 23.2 | 20.4 | 29.0 | 17.0 | EP 280 / O 21 | |
| 23.2 | 26.35 | 24.35 | 21.2 | 30.0 | 19.3 | EP 280 / O 22 | |
| 24.5 | 27.8 | 26.2 | 22.9 | 32.0 | 20.1 | EP 280 / O 23 | |
| 25.5 | 29.2 | 27.7 | 23.7 | 33.0 | 21.0 | EP 280 / O 24 | |
| 27.8 | 31.1 | 29.5 | 26.2 | 35.0 | 20.1 | EP 280 / O 25 | |
| 29.8 | 32.6 | 31.1 | 28.3 | 37.0 | 17.1 | EP 280 / O 26 | |
| 31.4 | 35.1 | 33.4 | 29.7 | 38.0 | 22.0 | EP 280 / O 27 | |
| 33.3 | 37.1 | 35.5 | 31.7 | 41.0 | 23.4 | EP 280 / O 28 | |
| 36.7 | 40.5 | 39.0 | 35.2 | 45.0 | 23.4 | EP 280 / O 29 | |
| 38.4 | 40.7 | 39.2 | 36.9 | 45.0 | 13.0 | EP 280 / O 291 | |
| 38.2 | 43.0 | 41.4 | 36.6 | 47.5 | 23.0 | EP 280 / O 30 | |
| 39.6 | 42.9 | 41.3 | 38.0 | 48.0 | 20.1 | EP 280 / O 31 | |
| 41.4 | 44.7 | 43.0 | 39.7 | 48.4 | 19.0 | EP 280 / O 32 | |
| 44.4 | 47.7 | 46.1 | 42.8 | 51.0 | 20.1 | EP 280 / O 33 | |
| 45.2 | 49.6 | 48.0 | 43.6 | 54.0 | 27.0 | EP 280 / O 34 | |
| 46.6 | 51.0 | 48.7 | 45.2 | 55.0 | 26.0 | EP 280 / O 35 | |
| 52.5 | 56.9 | 55.2 | 50.8 | 62.0 | 26.0 | EP 280 / O 36 | |
| 54.0 | 59.3 | 57.8 | 52.5 | 65.0 | 25.0 | EP 280 / O 37 | |
| 54.2 | 58.6 | 57.0 | 52.6 | 65.0 | 26.0 | EP 280 / O 38 | |
| 58.4 | 62.8 | 61.1 | 56.7 | 67.0 | 26.0 | EP 280 / O 39 | |
| 60.7 | 67.1 | 64.3 | 57.5 | 75.0 | 30.0 | EP 280 / O 40 | |
| 67.1 | 70.4 | 68.7 | 65.4 | 75.0 | 19.0 | EP 280 / O 41 | |
| 72.4 | 75.7 | 74.1 | 70.8 | 83.0 | 19.0 | EP 280 / O 42 | |
| 84.5 | 87.8 | 85.7 | 82.4 | 92.0 | 19.0 | EP 280 / O 43 |
| d1 | d2 | d3 | d4 | D | H | Reference No. |
|---|
| 4.4 | 6.15 | 4.6 | 2.8 | 10.0 | 10.0 | EP 280 / O 1 | |
|---|---|---|---|---|---|---|---|
| 6.0 | 7.75 | 6.15 | 4.4 | 11.0 | 10.0 | EP 280 / O 2 | |
| 7.6 | 9.35 | 7.75 | 6.0 | 13.0 | 10.0 | EP 280 / O 3 | |
| 8.4 | 10.15 | 8.55 | 6.8 | 14.0 | 10.0 | EP 280 / O 4 | |
| 9.2 | 10.95 | 9.25 | 7.5 | 14.0 | 10.0 | EP 280 / O 5 | |
| 9.9 | 11.35 | 10.05 | 8.3 | 15.0 | 10.0 | EP 280 / O 6 | |
| 10.6 | 12.35 | 10.75 | 9.0 | 16.0 | 10.0 | EP 280 / O 7 | |
| 10.9 | 13.05 | 11.55 | 9.5 | 17.0 | 11.0 | EP 280 / O 8 | |
| 12.0 | 14.1 | 12.5 | 10.4 | 18.0 | 13.0 | EP 280 / O 9 | |
| 12.5 | 14.2 | 13.3 | 11.2 | 18.0 | 12.0 | EP 280 / O 10 | |
| 13.5 | 15.6 | 14.0 | 11.9 | 19.0 | 13.0 | EP 280 / O 11 | |
| 14.0 | 16.1 | 14.5 | 12.4 | 19.0 | 12.9 | EP 280 / O 12 | |
| 15.0 | 17.0 | 15.5 | 13.2 | 21.0 | 13.0 | EP 280 / O 13 | |
| 16.1 | 18.4 | 16.9 | 14.5 | 22.0 | 13.0 | EP 280 / O 14 | |
| 17.3 | 19.4 | 17.6 | 15.5 | 22.0 | 15.3 | EP 280 / O 15 | |
| 17.5 | 20.1 | 18.5 | 15.9 | 24.0 | 16.0 | EP 280 / O 16 | |
| 18.4 | 21.0 | 19.4 | 16.8 | 25.0 | 16.0 | EP 280 / O 17 | |
| 19.0 | 21.6 | 20.0 | 17.4 | 25.0 | 15.8 | EP 280 / O 18 | |
| 20.4 | 23.2 | 21.6 | 18.8 | 27.0 | 17.2 | EP 280 / O 19 | |
| 20.7 | 23.5 | 21.9 | 19.1 | 28.0 | 17.0 | EP 280 / O 20 | |
| 22.0 | 25.1 | 23.2 | 20.4 | 29.0 | 17.0 | EP 280 / O 21 | |
| 23.2 | 26.35 | 24.35 | 21.2 | 30.0 | 19.3 | EP 280 / O 22 | |
| 24.5 | 27.8 | 26.2 | 22.9 | 32.0 | 20.1 | EP 280 / O 23 | |
| 25.5 | 29.2 | 27.7 | 23.7 | 33.0 | 21.0 | EP 280 / O 24 | |
| 27.8 | 31.1 | 29.5 | 26.2 | 35.0 | 20.1 | EP 280 / O 25 | |
| 29.8 | 32.6 | 31.1 | 28.3 | 37.0 | 17.1 | EP 280 / O 26 | |
| 31.4 | 35.1 | 33.4 | 29.7 | 38.0 | 22.0 | EP 280 / O 27 | |
| 33.3 | 37.1 | 35.5 | 31.7 | 41.0 | 23.4 | EP 280 / O 28 | |
| 36.7 | 40.5 | 39.0 | 35.2 | 45.0 | 23.4 | EP 280 / O 29 | |
| 38.4 | 40.7 | 39.2 | 36.9 | 45.0 | 13.0 | EP 280 / O 291 | |
| 38.2 | 43.0 | 41.4 | 36.6 | 47.5 | 23.0 | EP 280 / O 30 | |
| 39.6 | 42.9 | 41.3 | 38.0 | 48.0 | 20.1 | EP 280 / O 31 | |
| 41.4 | 44.7 | 43.0 | 39.7 | 48.4 | 19.0 | EP 280 / O 32 | |
| 44.4 | 47.7 | 46.1 | 42.8 | 51.0 | 20.1 | EP 280 / O 33 | |
| 45.2 | 49.6 | 48.0 | 43.6 | 54.0 | 27.0 | EP 280 / O 34 | |
| 46.6 | 51.0 | 48.7 | 45.2 | 55.0 | 26.0 | EP 280 / O 35 | |
| 52.5 | 56.9 | 55.2 | 50.8 | 62.0 | 26.0 | EP 280 / O 36 | |
| 54.0 | 59.3 | 57.8 | 52.5 | 65.0 | 25.0 | EP 280 / O 37 | |
| 54.2 | 58.6 | 57.0 | 52.6 | 65.0 | 26.0 | EP 280 / O 38 | |
| 58.4 | 62.8 | 61.1 | 56.7 | 67.0 | 26.0 | EP 280 / O 39 | |
| 60.7 | 67.1 | 64.3 | 57.5 | 75.0 | 30.0 | EP 280 / O 40 | |
| 67.1 | 70.4 | 68.7 | 65.4 | 75.0 | 19.0 | EP 280 / O 41 | |
| 72.4 | 75.7 | 74.1 | 70.8 | 83.0 | 19.0 | EP 280 / O 42 | |
| 84.5 | 87.8 | 85.7 | 82.4 | 92.0 | 19.0 | EP 280 / O 43 |
PROTEC products and specifications are subject to improvement and change without notice.
CAPTOP® EP 280 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.
Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.
Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
