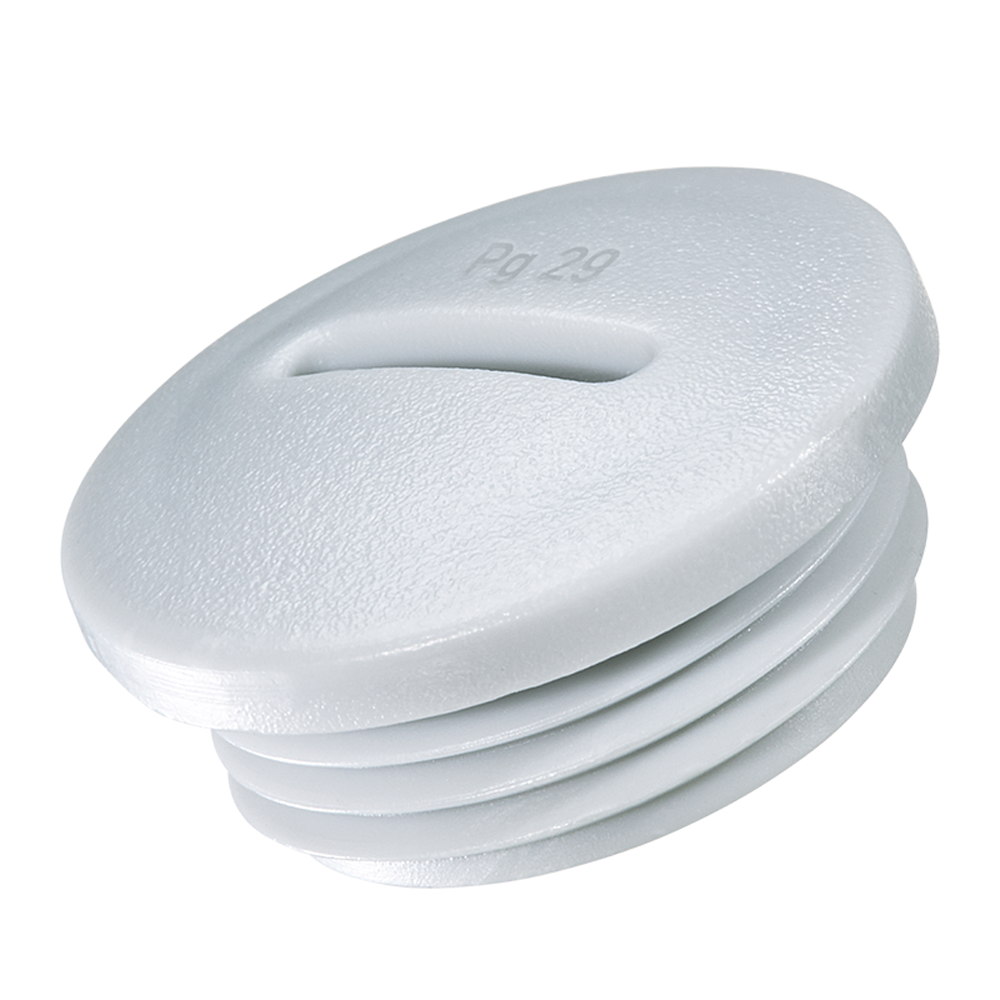

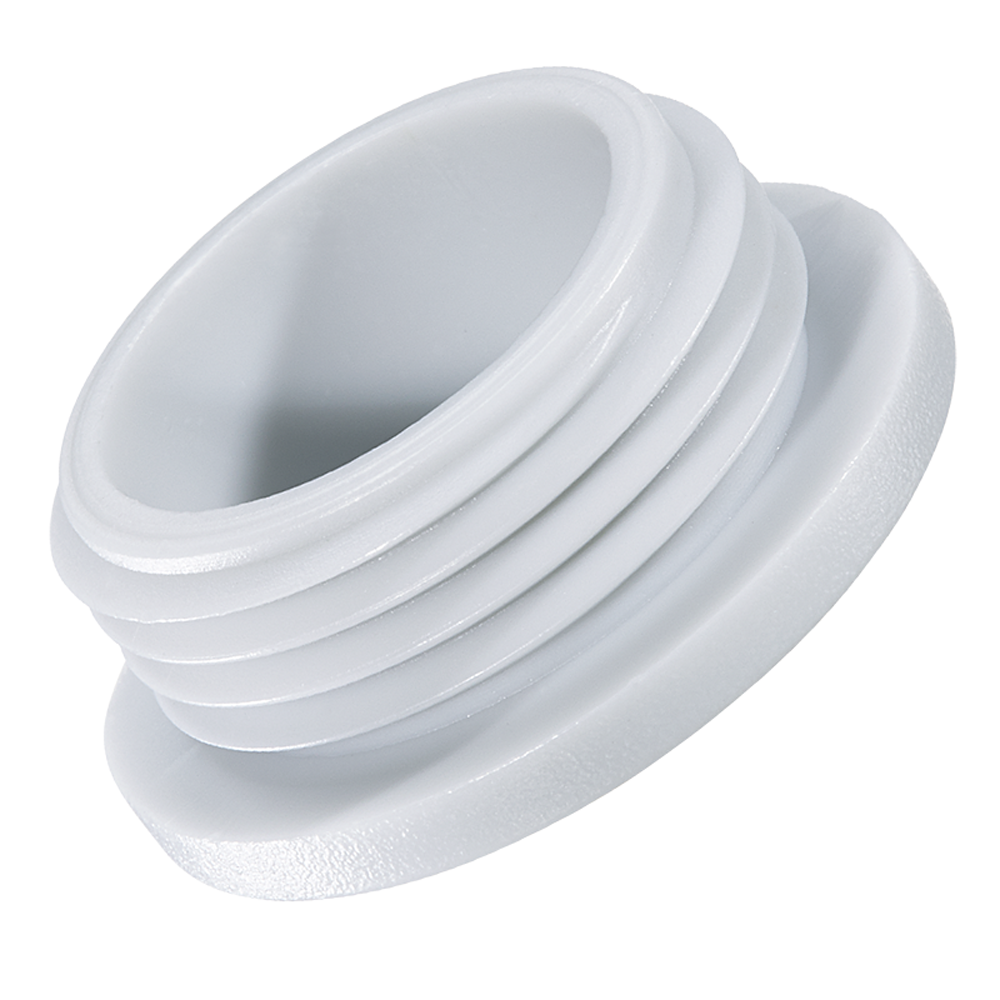

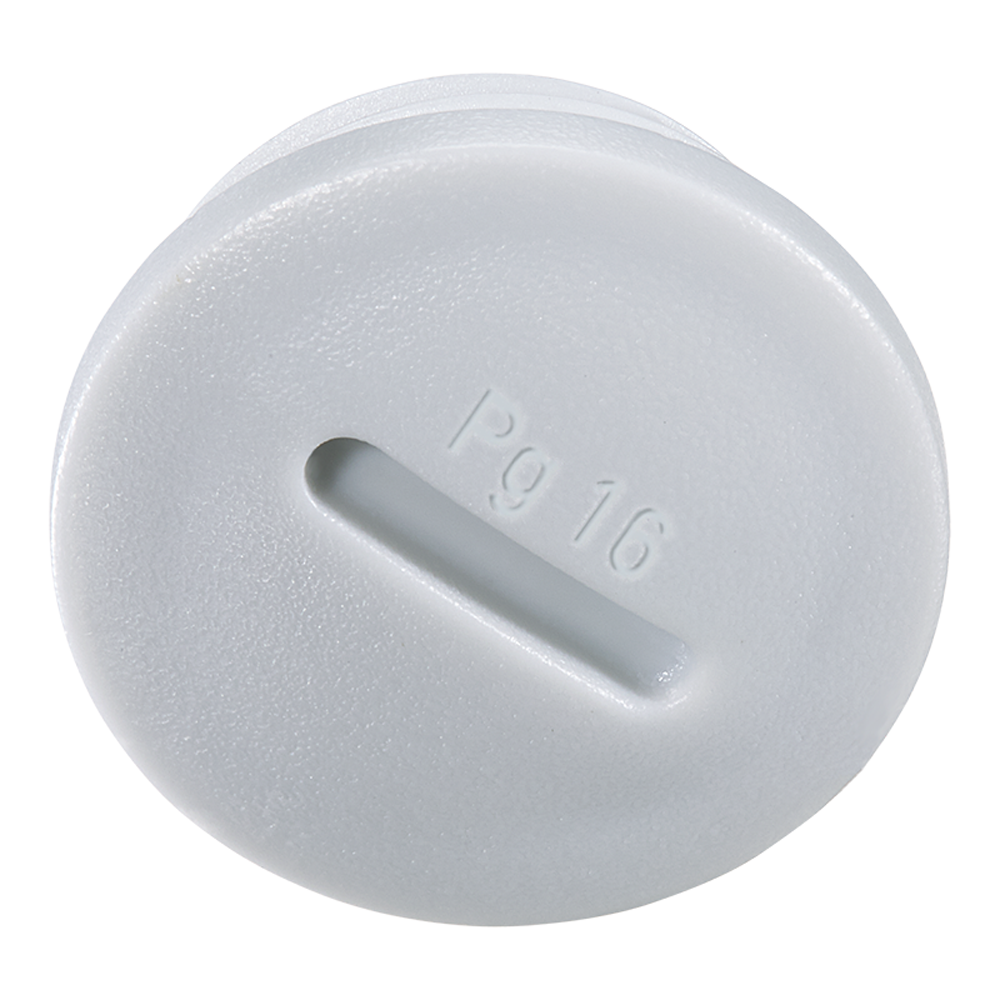

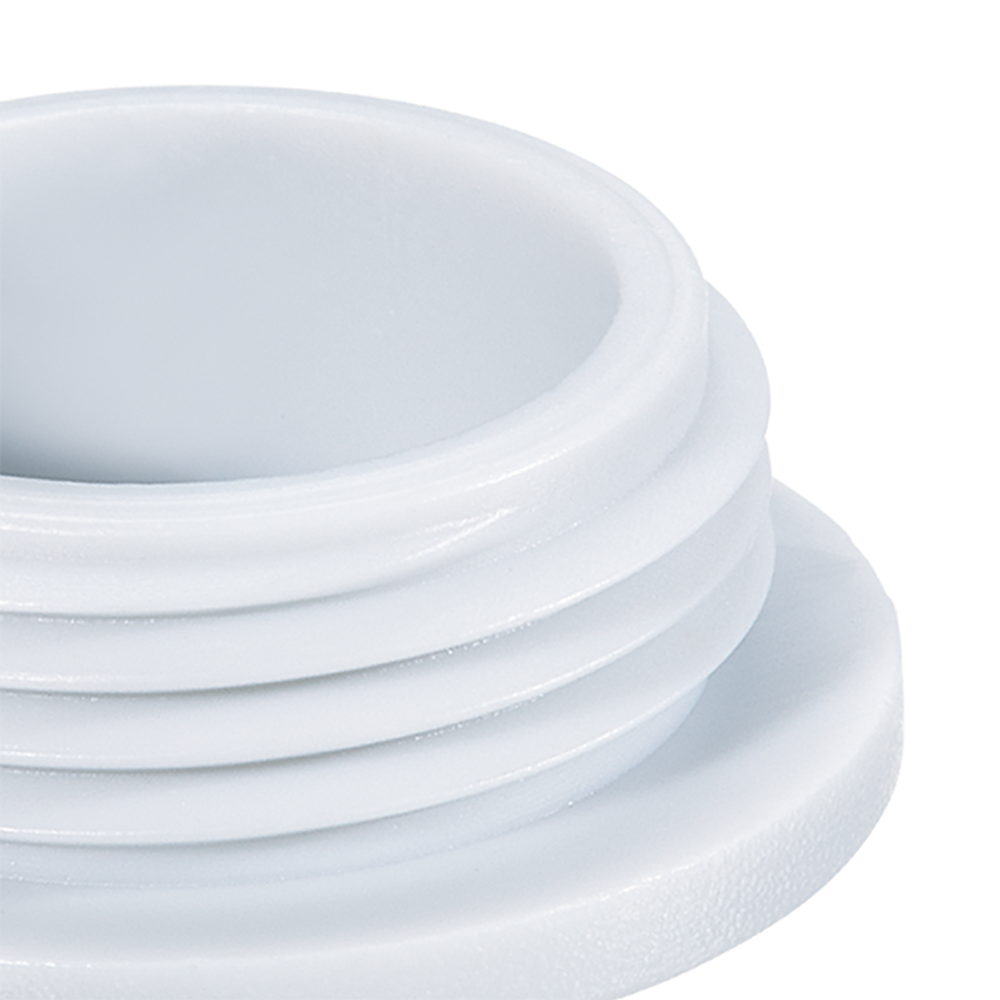

Close existing threads to secure unused ports for future use.
This range fits a variety of Metirc and PG thread sizes and can be applied for plugging threads in panels from 12mm to 63mm in diameter.
Standard Colours : Light grey RAL 7035, dark grey RAL 7001, black RAL 9005. Optional : White RAL 9010 and red RAL 3000. Additional colours are available on request.
Material PS (durable polystyrene) and PA 6 (impact restistant nylon) depending on sizes (see table).

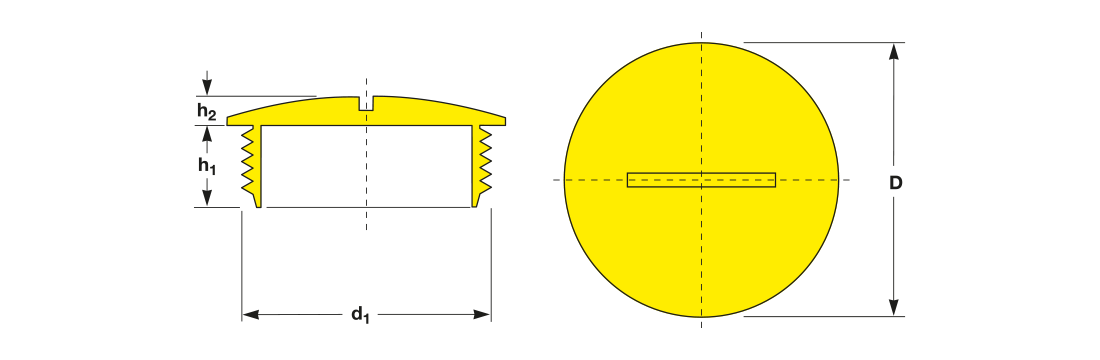

d1 | D | h1 | h2 | Material | Reference No. | Bookmark |
---|
Metric | ||||||
M 12x1.5 | 15.0 | 6.0 | 4.0 | PS | EPN 450/M 12x1.5 | |
---|---|---|---|---|---|---|
M 16x1.5 | 20.0 | 7.0 | 4.0 | PS | EPN 450/M 16x1.5 | |
M 20x1.5 | 24.0 | 7.0 | 4.5 | PS | EPN 450/M 20x1.5 | |
M 25x1.5 | 30.0 | 11.0 | 4.5 | PS | EPN 450/M 25x1.5 | |
M 32x1.5 | 38.0 | 11.0 | 5.0 | PS | EPN 450/M 32x1.5 | |
M 40x1.5 | 46.0 | 13.0 | 5.0 | PS | EPN 450/M 40x1.5 | |
M 50x1.5 | 56.0 | 14.0 | 6.5 | PA-GF | EPN 450/M 50x1.5 | |
M 63x1.5 | 69.7 | 15.0 | 5.5 | PA-GF | EPN 450/M 63x1.5 | |
PG | ||||||
PG 7 | 15.0 | 6.0 | 2.0 | PS | EPN 450/ PG 7 | |
PG 9 | 19.0 | 6.0 | 3.0 | PS | EPN 450/ PG 9 | |
PG 11 | 22.0 | 6.5 | 3.0 | PS | EPN 450/ PG 11 | |
PG 13.5 | 25.0 | 6.0 | 3.5 | PS | EPN 450/ PG 13.5 | |
PG 16 | 27.0 | 6.5 | 3.5 | PS | EPN 450/ PG 16 | |
PG 21 | 33.0 | 8.0 | 4.0 | PS | EPN 450/ PG 21 | |
PG 29 | 44.0 | 8.0 | 4.0 | PS | EPN 450/ PG 29 | |
PG 36 | 55.0 | 10.0 | 5.0 | PS | EPN 450/ PG 36 | |
PG 42 | 62.0 | 10.0 | 6.0 | PS | EPN 450/ PG 42 | |
PG 48 | 69.0 | 12.0 | 5.0 | PS | EPN 450/ PG 48 |
d1 | D | h1 | h2 | Material | Reference No. |
---|
Metric | ||||||
M 12x1.5 | 15.0 | 6.0 | 4.0 | PS | EPN 450/M 12x1.5 | |
---|---|---|---|---|---|---|
M 16x1.5 | 20.0 | 7.0 | 4.0 | PS | EPN 450/M 16x1.5 | |
M 20x1.5 | 24.0 | 7.0 | 4.5 | PS | EPN 450/M 20x1.5 | |
M 25x1.5 | 30.0 | 11.0 | 4.5 | PS | EPN 450/M 25x1.5 | |
M 32x1.5 | 38.0 | 11.0 | 5.0 | PS | EPN 450/M 32x1.5 | |
M 40x1.5 | 46.0 | 13.0 | 5.0 | PS | EPN 450/M 40x1.5 | |
M 50x1.5 | 56.0 | 14.0 | 6.5 | PA-GF | EPN 450/M 50x1.5 | |
M 63x1.5 | 69.7 | 15.0 | 5.5 | PA-GF | EPN 450/M 63x1.5 | |
PG | ||||||
PG 7 | 15.0 | 6.0 | 2.0 | PS | EPN 450/ PG 7 | |
PG 9 | 19.0 | 6.0 | 3.0 | PS | EPN 450/ PG 9 | |
PG 11 | 22.0 | 6.5 | 3.0 | PS | EPN 450/ PG 11 | |
PG 13.5 | 25.0 | 6.0 | 3.5 | PS | EPN 450/ PG 13.5 | |
PG 16 | 27.0 | 6.5 | 3.5 | PS | EPN 450/ PG 16 | |
PG 21 | 33.0 | 8.0 | 4.0 | PS | EPN 450/ PG 21 | |
PG 29 | 44.0 | 8.0 | 4.0 | PS | EPN 450/ PG 29 | |
PG 36 | 55.0 | 10.0 | 5.0 | PS | EPN 450/ PG 36 | |
PG 42 | 62.0 | 10.0 | 6.0 | PS | EPN 450/ PG 42 | |
PG 48 | 69.0 | 12.0 | 5.0 | PS | EPN 450/ PG 48 |
