YOUR CAPTOP® ADVANTAGE: Best Price in the Market

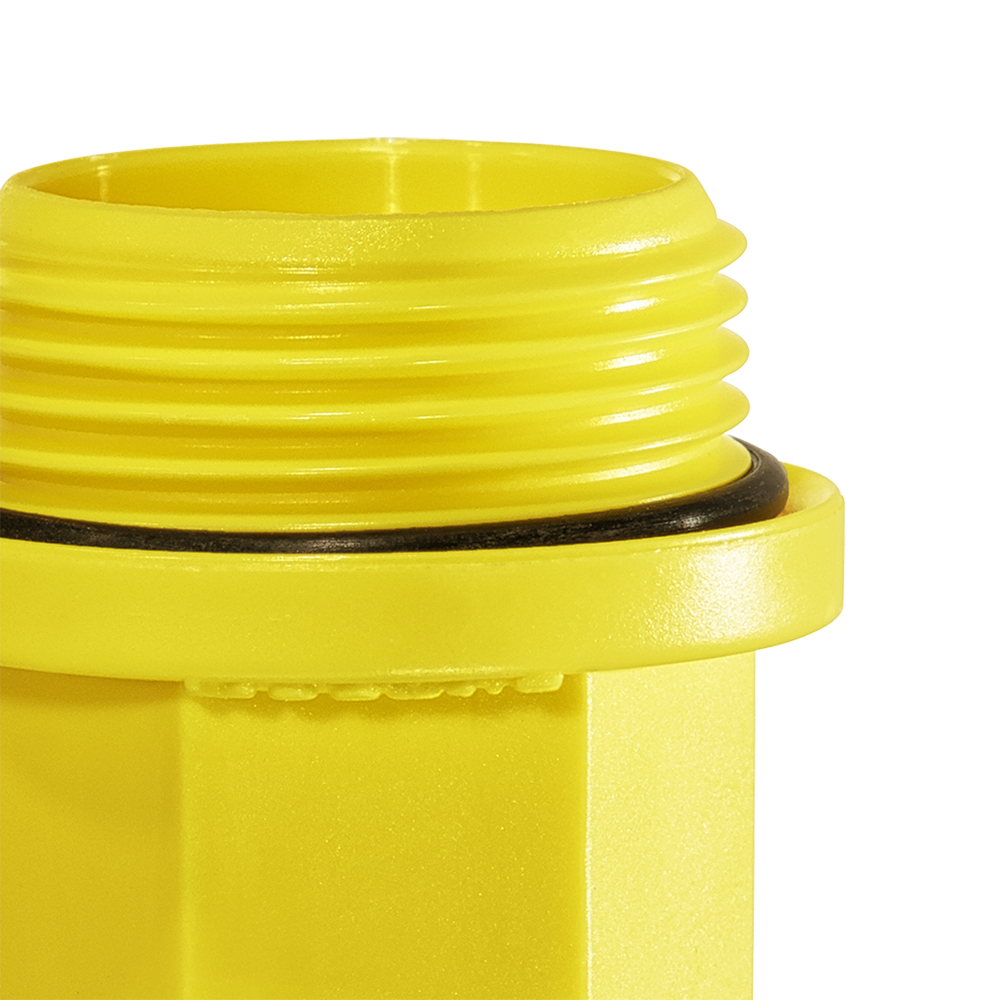

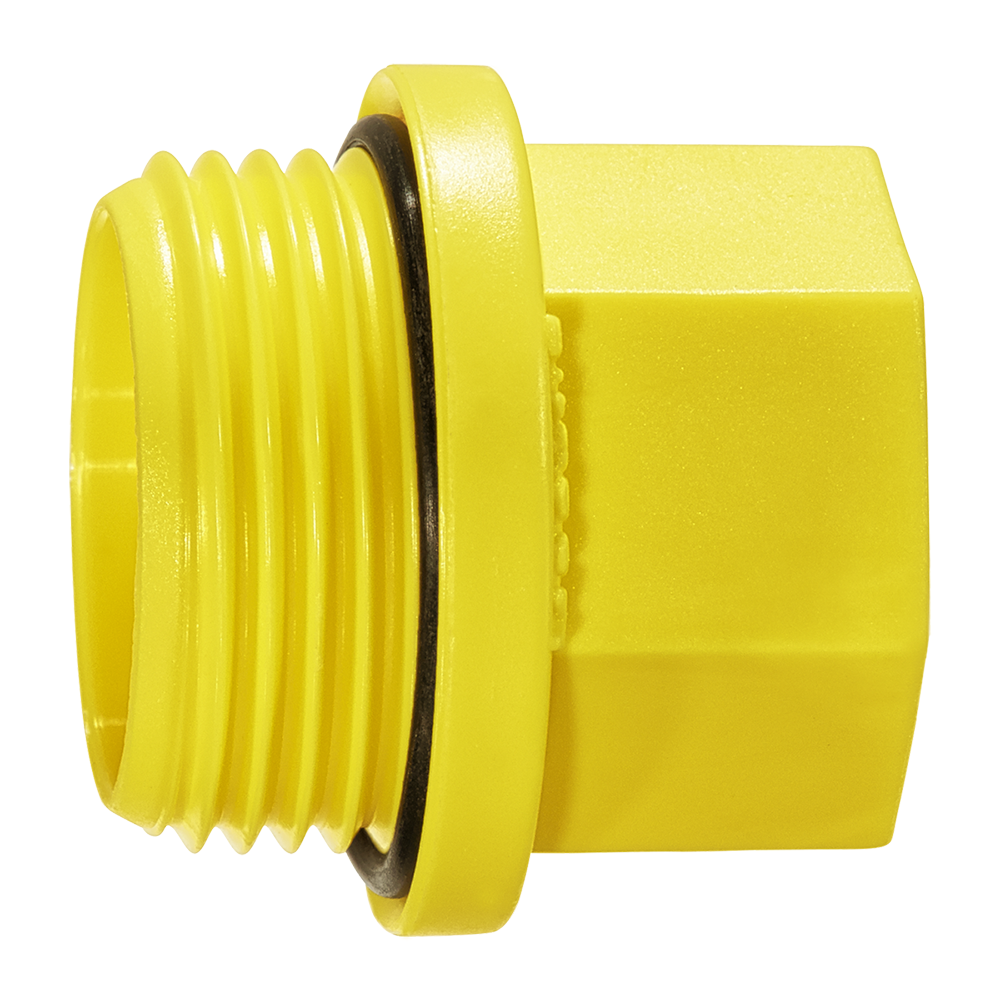

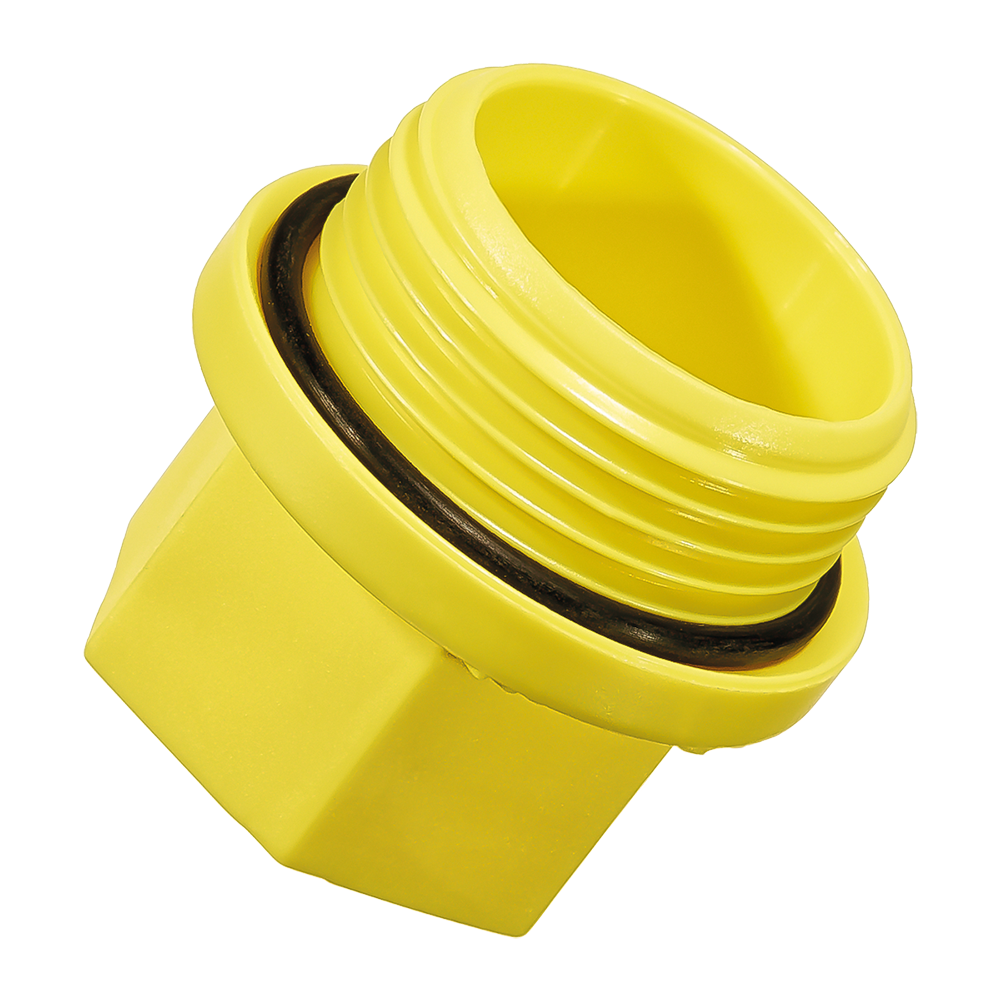

Threaded sealing plug design EP 435 complete with O-Ring provides an outstanding seal force useable under complicated working conditions.
Nylon 6 is used for its stability to withstand temperatures of up to 150 °C and pressures up to 2,5 bar (during painting processing and testing).
5 complete threads for optimum use.
The hexagon head allows tightening and removal with either a screwdriver or a spanner or special tool.
Guaranteed seal.
Std. Color: yellow
Material: Premium, impact resistant Nylon ( PA 6 )

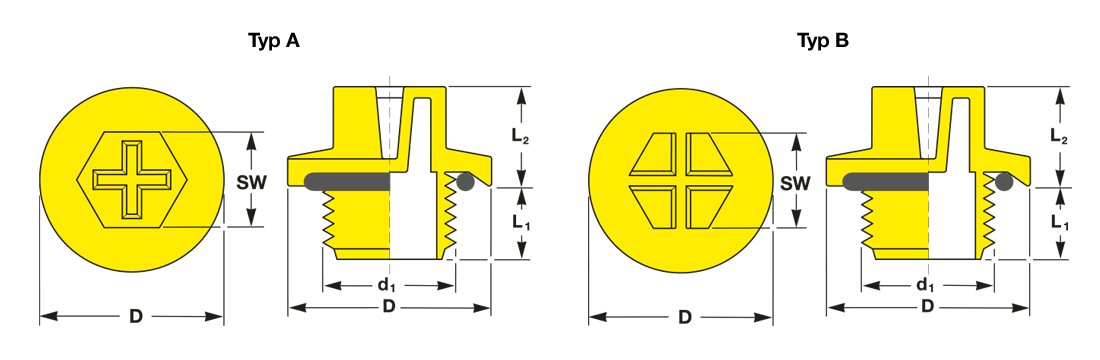

| d1 | D | L1 | L2 | SW | Type | Reference No. | Bookmark |
|---|
| DIN EN ISO 228-1 / DIN 3852-2 | |||||||
| G .1/8" | 16.8 | 7.5 | 11.2 | 13 | A | EP 439 / .1/8" | |
|---|---|---|---|---|---|---|---|
| G .1/4" | 19.0 | 7.5 | 11.3 | 13 | A | EP 439 / .1/4" | |
| G .3/8" | 22.0 | 7.6 | 12.5 | 17 | A | EP 439 / .3/8" | |
| G .1/2" | 27.0 | 10.6 | 14.7 | 19 | A | EP 439 / .1/2" | |
| G .3/4" | 32.2 | 11.1 | 14.2 | 24 | A | EP 439 / .3/4" | |
| G 1." | 39.7 | 13.6 | 15.8 | 27 | B | EP 439 / 1." | |
| G 1.1/4" | 49.8 | 13.5 | 17.8 | 36 | B | EP 439 / 1.1/4" | |
| G 1.1/2" | 55.4 | 13.5 | 16.5 | 41 | B | EP 439 / 1.1/2" | |
| G 2." | 68.2 | 13.5 | 16.6 | 55 | B | EP 439 / 2." | |
| Metric DIN 3852-1 / DIN ISO 6149-1 | |||||||
| M 10 x 1 | 14.0 | 5.5 | 11.5 | 10 | B | EP 439 / M 10 x 1 | |
| M 12 x 1.5 | 17.2 | 8.2 | 11.5 | 13 | A | EP 439 / M 12 x 1.5 | |
| M 14 x 1.5 | 19.1 | 10.1 | 11.2 | 13 | A | EP 439 / M 14 x 1.5 | |
| M 16 x 1.5 | 21.7 | 7.5 | 11.6 | 17 | A | EP 439 / M 16 x 1.5 | |
| M 18 x 1.5 | 23.8 | 8.6 | 12.3 | 17 | A | EP 439 / M 18 x 1.5 | |
| M 20 x 1.5 | 25.8 | 8.5 | 15.5 | 19 | A | EP 439 / M 20 x 1.5 | |
| M 22 x 1.5 | 26.7 | 8.6 | 15.5 | 19 | A | EP 439 / M 22 x 1.5 | |
| M 24 x 1.5 | 31.2 | 10.6 | 15.2 | 24 | A | EP 439 / M 24 x 1.5 | |
| M 26 x 1.5 | 31.8 | 8.5 | 15.5 | 24 | A | EP 439 / M 26 x 1.5 | |
| M 27 x 2 | 32.1 | 11.5 | 15.4 | 24 | A | EP 439 / M 27 x 2 | |
| M 33 x 2 | 39.6 | 11.5 | 15.6 | 27 | B | EP 439 / M 33 x 2 | |
| M 42 x 2 | 49.8 | 11.5 | 16.6 | 36 | B | EP 439 / M 42 x 2 | |
| ISO 11926-1 | |||||||
| .7 / 16" - 20 UNF | 21.0 | 10.0 | 10.2 | 13 | A | EP 439 / .7 / 16" - 20 UNF | |
| .1/ 2" - 20 UNF | 22.8 | 9.6 | 11.3 | 13 | A | EP 439 / .1/ 2" - 20 UNF | |
| .9 / 16" - 18 UNF | 24.8 | 9.5 | 11.3 | 13 | A | EP 439 / .9 / 16" - 18 UNF SF4 | |
| .5 / 8" - 18 UNF | 24.9 | 10.5 | 13.2 | 17 | A | EP 439 / .5 / 8" - 18 UNF | |
| .3 / 4" - 16 UNF | 25.6 | 8.9 | 14.3 | 17 | A | EP 439 / .3 / 4" - 16 UNF | |
| .7 / 8" - 14 UNF | 33.9 | 12.5 | 13.6 | 19 | A | EP 439 / .7 / 8" - 14 UNF | |
| 1.1 /16" - 12 UN | 40.7 | 12.5 | 13.4 | 24 | A | EP 439 / 1.1 / 16" - 12 UN | |
| 1.5 /16" - 12 UN | 42.1 | 13.5 | 16.5 | 27 | A | EP 439 / 1.5 / 16" - 12 UN | |
| 1.5 / 8" - 12 UN | 55.6 | 15.7 | 16.3 | 36 | A | EP 439 / 1.5 / 8" - 12 UN | |
| 1.5 / 8" - 16 UN | 57.6 | 15.8 | 16.6 | 36 | A | EP 439 / 1.5 / 8" - 16 UN | |
| d1 | D | L1 | L2 | SW | Type | Reference No. |
|---|
| DIN EN ISO 228-1 / DIN 3852-2 | |||||||
| G .1/8" | 16.8 | 7.5 | 11.2 | 13 | A | EP 439 / .1/8" | |
|---|---|---|---|---|---|---|---|
| G .1/4" | 19.0 | 7.5 | 11.3 | 13 | A | EP 439 / .1/4" | |
| G .3/8" | 22.0 | 7.6 | 12.5 | 17 | A | EP 439 / .3/8" | |
| G .1/2" | 27.0 | 10.6 | 14.7 | 19 | A | EP 439 / .1/2" | |
| G .3/4" | 32.2 | 11.1 | 14.2 | 24 | A | EP 439 / .3/4" | |
| G 1." | 39.7 | 13.6 | 15.8 | 27 | B | EP 439 / 1." | |
| G 1.1/4" | 49.8 | 13.5 | 17.8 | 36 | B | EP 439 / 1.1/4" | |
| G 1.1/2" | 55.4 | 13.5 | 16.5 | 41 | B | EP 439 / 1.1/2" | |
| G 2." | 68.2 | 13.5 | 16.6 | 55 | B | EP 439 / 2." | |
| Metric DIN 3852-1 / DIN ISO 6149-1 | |||||||
| M 10 x 1 | 14.0 | 5.5 | 11.5 | 10 | B | EP 439 / M 10 x 1 | |
| M 12 x 1.5 | 17.2 | 8.2 | 11.5 | 13 | A | EP 439 / M 12 x 1.5 | |
| M 14 x 1.5 | 19.1 | 10.1 | 11.2 | 13 | A | EP 439 / M 14 x 1.5 | |
| M 16 x 1.5 | 21.7 | 7.5 | 11.6 | 17 | A | EP 439 / M 16 x 1.5 | |
| M 18 x 1.5 | 23.8 | 8.6 | 12.3 | 17 | A | EP 439 / M 18 x 1.5 | |
| M 20 x 1.5 | 25.8 | 8.5 | 15.5 | 19 | A | EP 439 / M 20 x 1.5 | |
| M 22 x 1.5 | 26.7 | 8.6 | 15.5 | 19 | A | EP 439 / M 22 x 1.5 | |
| M 24 x 1.5 | 31.2 | 10.6 | 15.2 | 24 | A | EP 439 / M 24 x 1.5 | |
| M 26 x 1.5 | 31.8 | 8.5 | 15.5 | 24 | A | EP 439 / M 26 x 1.5 | |
| M 27 x 2 | 32.1 | 11.5 | 15.4 | 24 | A | EP 439 / M 27 x 2 | |
| M 33 x 2 | 39.6 | 11.5 | 15.6 | 27 | B | EP 439 / M 33 x 2 | |
| M 42 x 2 | 49.8 | 11.5 | 16.6 | 36 | B | EP 439 / M 42 x 2 | |
| ISO 11926-1 | |||||||
| .7 / 16" - 20 UNF | 21.0 | 10.0 | 10.2 | 13 | A | EP 439 / .7 / 16" - 20 UNF | |
| .1/ 2" - 20 UNF | 22.8 | 9.6 | 11.3 | 13 | A | EP 439 / .1/ 2" - 20 UNF | |
| .9 / 16" - 18 UNF | 24.8 | 9.5 | 11.3 | 13 | A | EP 439 / .9 / 16" - 18 UNF SF4 | |
| .5 / 8" - 18 UNF | 24.9 | 10.5 | 13.2 | 17 | A | EP 439 / .5 / 8" - 18 UNF | |
| .3 / 4" - 16 UNF | 25.6 | 8.9 | 14.3 | 17 | A | EP 439 / .3 / 4" - 16 UNF | |
| .7 / 8" - 14 UNF | 33.9 | 12.5 | 13.6 | 19 | A | EP 439 / .7 / 8" - 14 UNF | |
| 1.1 /16" - 12 UN | 40.7 | 12.5 | 13.4 | 24 | A | EP 439 / 1.1 / 16" - 12 UN | |
| 1.5 /16" - 12 UN | 42.1 | 13.5 | 16.5 | 27 | A | EP 439 / 1.5 / 16" - 12 UN | |
| 1.5 / 8" - 12 UN | 55.6 | 15.7 | 16.3 | 36 | A | EP 439 / 1.5 / 8" - 12 UN | |
| 1.5 / 8" - 16 UN | 57.6 | 15.8 | 16.6 | 36 | A | EP 439 / 1.5 / 8" - 16 UN | |
PROTEC products and specifications are subject to improvement and change without notice.
CAPTOP® EP 439 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.
Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.
Nylon 6 guarantees a very high resistance against hydraulic fluids, acids, base alkalines and Solvents.
Extremely economical when compared to metal.
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.
Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
