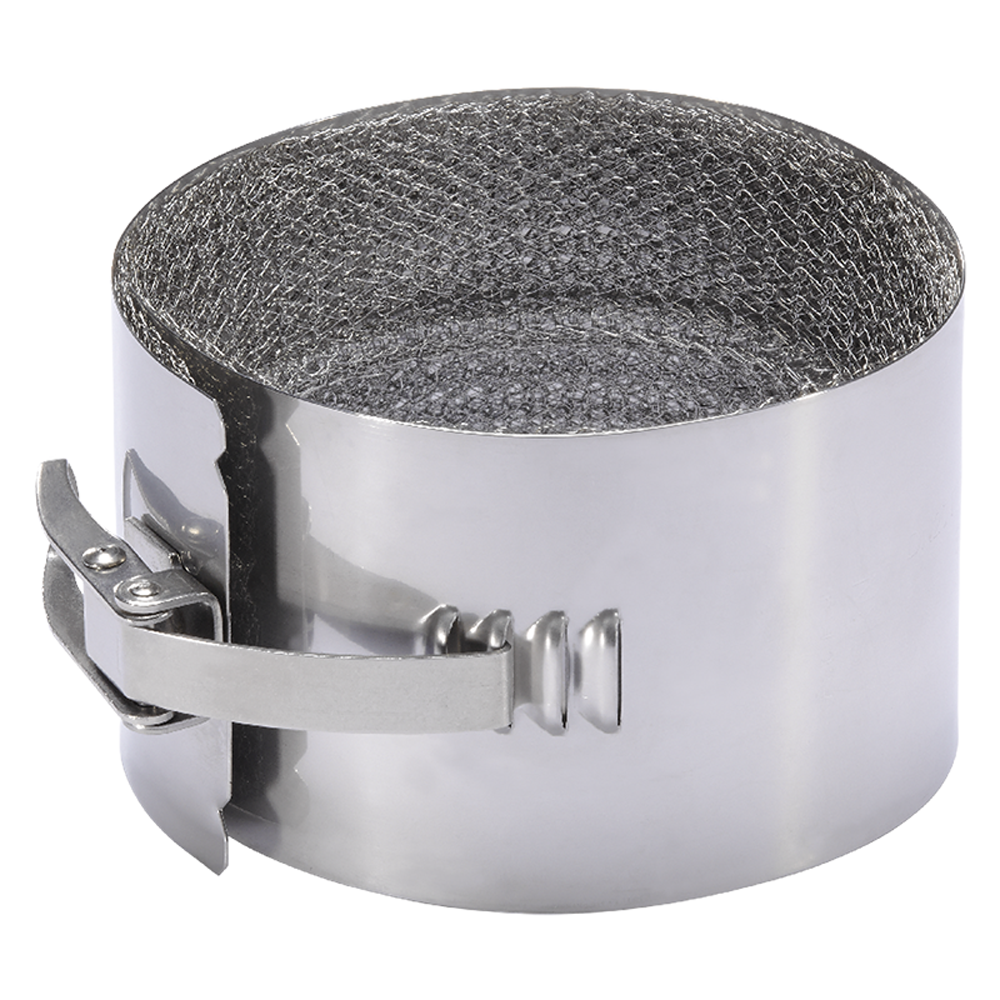

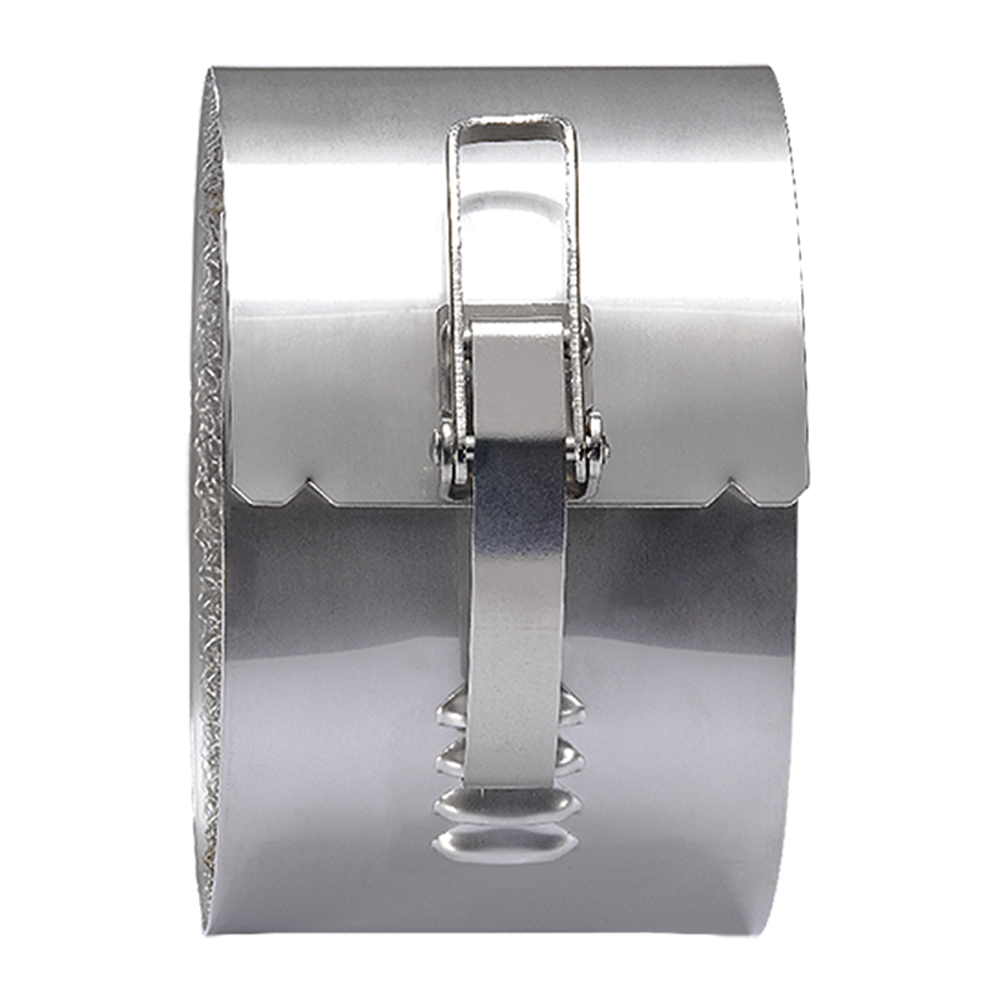

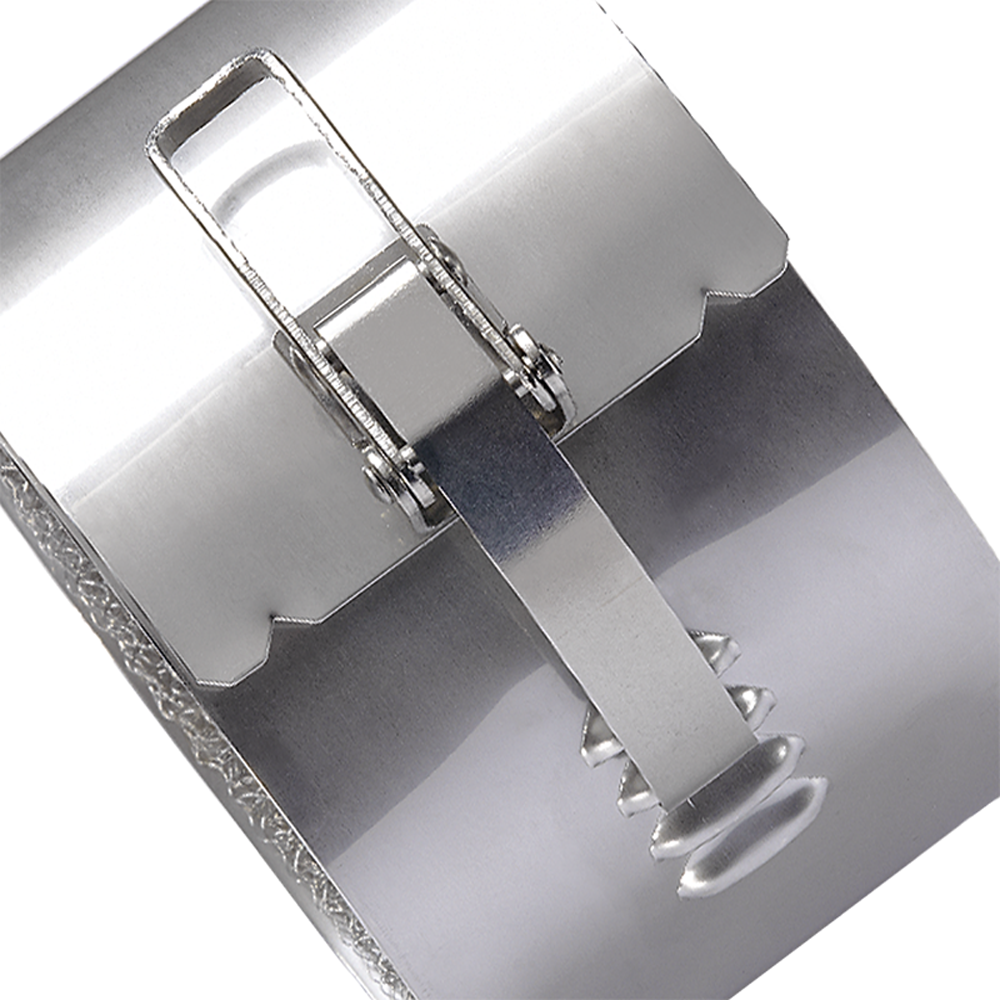

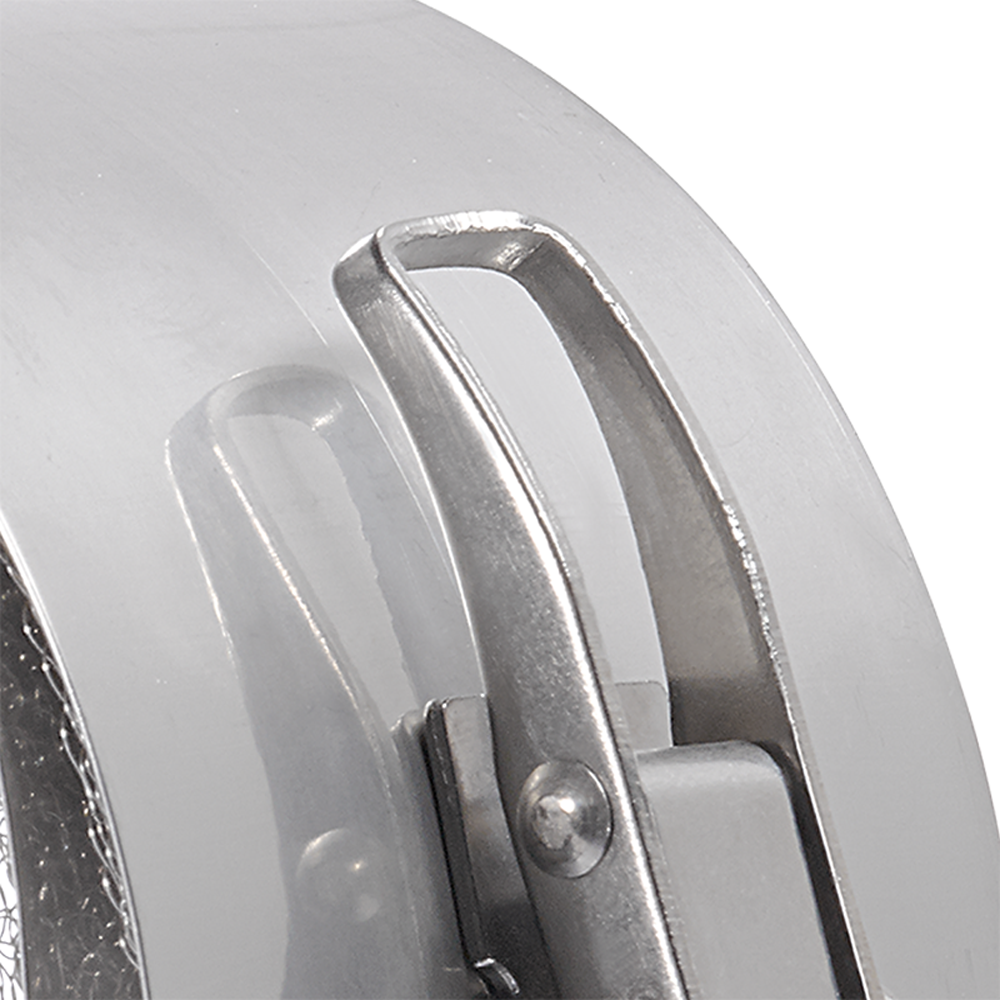

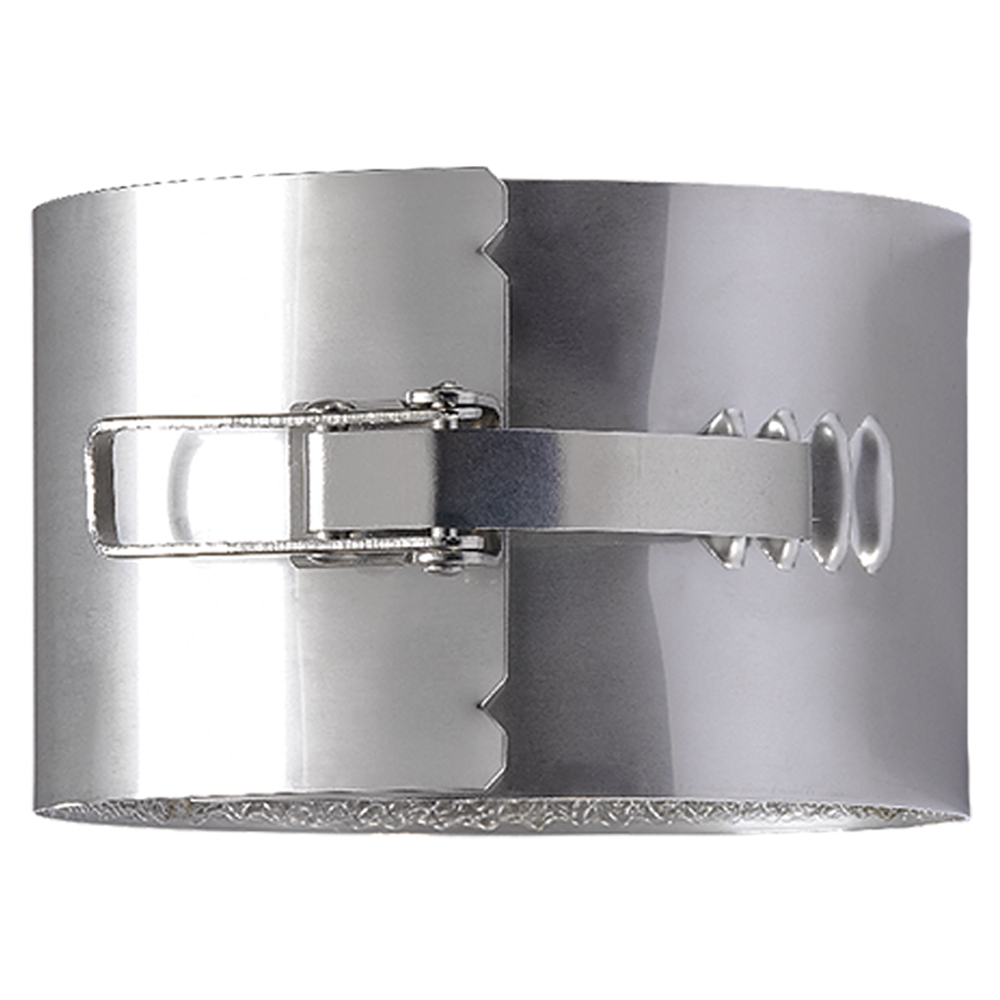

ProteC Dura-safe® SRM 3600D

Spray control safety rings, stainless steel


Dura-safe® SRM 3600D

Spray control safety rings, stainless steel


This range is designed for installation over flange joints to prevent injury and damage in the event of a hazardous spray out.

Steel Rings SRM 3600 are used for high temperature and/or pressure applications when PP spray shields are unsuitable for the design conditions.

Stainless steel spray shields in ASTM 316 are suitable for maximum operating temperature of 1100 °C and maximum operating pressures of 240 bar.

Stainless steel ASTM 316 for high temperature resistance.

Also available: ANSI 24." to 600 lbs.

Material: Stainless steel ASTM 316

PROTEC DURA-SAFE SRM 3600D
Flange PN
6
PN
10
PN
16
PN
25
PN
40
PN
64
PN
100
PN
6
PN
10
PN
16
PN
25
PN
40
PN
64
PN
100

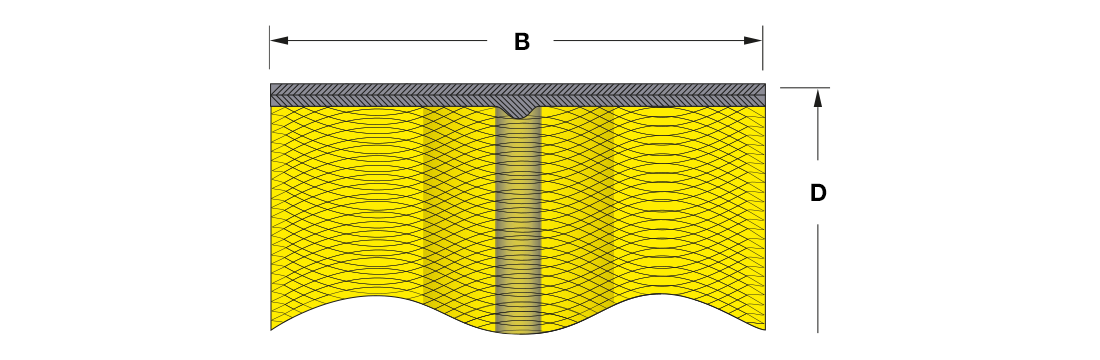

B Reference No. Bookmark
DN     10     75.0 50.0 SRM-DN 10/PN6/50
DN     10     90.0     90.0     90.0     90.0 50.0 SRM-DN 10/PN10-40/50
DN     10     90.0     90.0     90.0     90.0 70.0 SRM-DN 10/PN10-40/70
DN     10   100.0   100.0 50.0 SRM-DN 10/PN64-100/50
DN     15     80.0 50.0 SRM-DN 15/PN6/50
DN     15     95.0     95.0     95.0     95.0 50.0 SRM-DN 15/PN10-40/50
DN     15     95.0     95.0     95.0     95.0 70.0 SRM-DN 15/PN10-40/70
DN     15   105.0   105.0 50.0 SRM-DN 15/PN64-100/50
DN     15   105.0   105.0 70.0 SRM-DN 15/PN64-100/70
DN     20     90.0 50.0 SRM-DN 20/PN6/50
DN     20     90.0 70.0 SRM-DN 20/PN6/70
DN     20   105.0   105.0   105.0   105.0 50.0 SRM-DN 20/PN10-40/50
DN     20   105.0   105.0   105.0   105.0 70.0 SRM-DN 20/PN10-40/70
DN     25   100.0 50.0 SRM-DN 25/PN6/50
DN     25   115.0   115.0   115.0   115.0 50.0 SRM-DN 25/PN10-40/50
DN     25   115.0   115.0   115.0   115.0 70.0 SRM-DN 25/PN10-40/70
DN     25   140.0   140.0 50.0 SRM-DN 25/PN64-100/50
DN     25   140.0   140.0 70.0 SRM-DN 25/PN64-100/70
DN     32   120.0 50.0 SRM-DN 32/PN6/50
DN     32   140.0   140.0   140.0   140.0 50.0 SRM-DN 32/PN10-40/50
DN     32   140.0   140.0   140.0   140.0 70.0 SRM-DN 32/PN10-40/70
DN     40   130.0 50.0 SRM-DN 40/PN6/50
DN     40   150.0   150.0   150.0   150.0 50.0 SRM-DN 40/PN10-40/50
DN     40   150.0   150.0   150.0   150.0 70.0 SRM-DN 40/PN10-40/70
DN     40   170.0   170.0 50.0 SRM-DN 40/PN64-100/50
DN     50   140.0 50.0 SRM-DN 50/PN6/50
DN     50   140.0 70.0 SRM-DN 50/PN6/70
DN     50   165.0   165.0   165.0   165.0 50.0 SRM-DN 50/PN10-40/50
DN     50   165.0   165.0   165.0   165.0 70.0 SRM-DN 50/PN10-40/70
DN     50   180.0 50.0 SRM-DN 50/PN64/50
DN     50   195.0 50.0 SRM-DN 50/PN100/50
DN     65   160.0 50.0 SRM-DN 65/PN6/50
DN     65   160.0 70.0 SRM-DN 65/PN6/70
DN     65   185.0   185.0   185.0   185.0 50.0 SRM-DN 65/PN10-40/50
DN     65   185.0   185.0   185.0   185.0 70.0 SRM-DN 65/PN10-40/70
DN     65   205.0 50.0 SRM-DN 65/PN64/50
DN     65   220.0 50.0 SRM-DN 65/PN100/50
DN     65   220.0 70.0 SRM-DN 65/PN100/70
DN     80   190.0 50.0 SRM-DN 80/PN6/50
DN     80   190.0 70.0 SRM-DN 80/PN6/70
DN     80   200.0   200.0   200.0   200.0 50.0 SRM-DN 80/PN10-40/50
DN     80   200.0   200.0   200.0   200.0 70.0 SRM-DN 80/PN10-40/70
DN     80   215.0 50.0 SRM-DN 80/PN64/50
DN     80   230.0 50.0 SRM-DN 80/PN100/50
DN   100   210.0 50.0 SRM-DN 100/PN6/50
DN   100   210.0 70.0 SRM-DN 100/PN6/70
DN   100   200.0   200.0 50.0 SRM-DN 100/PN10-16/50
DN   100   200.0   200.0 70.0 SRM-DN 100/PN10-16/70
DN   100   235.0   235.0 50.0 SRM-DN 100/PN25-40/50
DN   100   235.0   235.0 70.0 SRM-DN 100/PN25-40/70
DN   100   250.0 50.0 SRM-DN 100/PN64/50
DN   100   250.0 70.0 SRM-DN 100/PN64/70
DN   100   265.0 50.0 SRM-DN 100/PN100/50
DN   100   265.0 70.0 SRM-DN 100/PN100/70
DN   125   240.0 50.0 SRM-DN 125/PN6/50
DN   125   240.0 70.0 SRM-DN 125/PN6/70
DN   125   250.0   250.0 50.0 SRM-DN 125/PN10-16/50
DN   125   250.0   250.0 70.0 SRM-DN 125/PN10-16/70
DN   125   270.0   270.0 50.0 SRM-DN 125/PN25-40/50
DN   125   270.0   270.0 70.0 SRM-DN 125/PN25-40/70
DN   125   295.0 50.0 SRM-DN 125/PN64/50
DN   125   315.0 50.0 SRM-DN 125/PN100/50
DN   150   265.0 50.0 SRM-DN 150/PN6/50
DN   150   265.0 70.0 SRM-DN 150/PN6/70
DN   150   285.0   285.0 50.0 SRM-DN 150/PN10-16/50
DN   150   285.0   285.0 70.0 SRM-DN 150/PN10-16/70
DN   150   300.0   300.0 50.0 SRM-DN 150/PN25-40/50
DN   150   300.0   300.0 70.0 SRM-DN 150/PN25-40/70
DN   150   345.0 50.0 SRM-DN 150/PN64/50
DN   150   355.0 50.0 SRM-DN 150/PN100/50
DN   200   320.0 50.0 SRM-DN 200/PN6/50
DN   200   320.0 70.0 SRM-DN 200/PN6/70
DN   200   340.0   340.0 50.0 SRM-DN 200/PN10-16/50
DN   200   340.0   340.0 70.0 SRM-DN 200/PN10-16/70
DN   200   360.0 50.0 SRM-DN 200/PN25/50
DN   200   360.0 70.0 SRM-DN 200/PN25/70
DN   200   375.0 50.0 SRM-DN 200/PN40/50
DN   200   375.0 70.0 SRM-DN 200/PN40/70
DN   200   415.0 50.0 SRM-DN 200/PN64/50
DN   200   430.0 50.0 SRM-DN 200/PN100/50
DN   250   375.0 50.0 SRM-DN 250/PN6/50
DN   250   375.0 70.0 SRM-DN 250/PN6/70
DN   250   395.0 50.0 SRM-DN 250/PN10/50
DN   250   395.0 70.0 SRM-DN 250/PN10/70
DN   250   405.0 50.0 SRM-DN 250/PN16/50
DN   250   425.0 50.0 SRM-DN 250/PN25/50
DN   250   425.0 70.0 SRM-DN 250/PN25/70
DN   250   450.0 50.0 SRM-DN 250/PN40/50
DN   250   450.0 70.0 SRM-DN 250/PN40/70
DN   250   470.0 50.0 SRM-DN 250/PN64/50
DN   250   505.0 50.0 SRM-DN 250/PN100/50
DN   250   505.0 70.0 SRM-DN 250/PN100/70
DN   300   440.0 50.0 SRM-DN 300/PN6/50
DN   300   440.0 70.0 SRM-DN 300/PN6/70
DN   300   445.0 50.0 SRM-DN 300/PN10/50
DN   300   445.0 70.0 SRM-DN 300/PN10/70
DN   300   460.0 50.0 SRM-DN 300/PN16/50
DN   300   485.0 50.0 SRM-DN 300/PN25/50
DN   300   485.0 70.0 SRM-DN 300/PN25/70
DN   300   515.0 50.0 SRM-DN 300/PN40/50
DN   300   515.0 70.0 SRM-DN 300/PN40/70
DN   300   530.0 50.0 SRM-DN 300/PN64/50
DN   300   585.0 50.0 SRM-DN 300/PN100/50
DN   350   490.0 50.0 SRM-DN 350/PN6/50
DN   350   490.0 70.0 SRM-DN 350/PN6/70
DN   350   505.0 50.0 SRM-DN 350/PN10/50
DN   350   505.0 70.0 SRM-DN 350/PN10/70
DN   350   520.0 50.0 SRM-DN 350/PN16/50
DN   350   555.0 50.0 SRM-DN 350/PN25/50
DN   350   555.0 70.0 SRM-DN 350/PN25/70
DN   350   580.0 50.0 SRM-DN 350/PN40/50
DN   350   580.0 70.0 SRM-DN 350/PN40/70
DN   350   600.0 50.0 SRM-DN 350/PN64/50
DN   350   655.0 50.0 SRM-DN 350/PN100/50
DN   400   540.0 50.0 SRM-DN 400/PN6/50
DN   400   540.0 70.0 SRM-DN 400/PN6/70
DN   400   565.0 50.0 SRM-DN 400/PN10/50
DN   400   565.0 70.0 SRM-DN 400/PN10/70
DN   400   580.0 50.0 SRM-DN 400/PN16/50
DN   400   580.0 70.0 SRM-DN 400/PN16/70
DN   400   620.0 50.0 SRM-DN 400/PN25/50
DN   400   620.0 70.0 SRM-DN 400/PN25/70
DN   400   660.0 50.0 SRM-DN 400/PN40/50
DN   400   670.0 50.0 SRM-DN 400/PN64/50
DN   400   670.0 70.0 SRM-DN 400/PN64/70
DN   500   645.0 50.0 SRM-DN 500/PN6/50
DN   500   645.0 70.0 SRM-DN 500/PN6/70
DN   500   670.0 50.0 SRM-DN 500/PN10/50
DN   500   670.0 70.0 SRM-DN 500/PN10/70
DN   500   715.0 50.0 SRM-DN 500/PN16/50
DN   500   730.0 50.0 SRM-DN 500/PN25/50
DN   500   730.0 70.0 SRM-DN 500/PN25/70
DN   500   755.0 50.0 SRM-DN 500/PN40/50
DN   500   755.0 70.0 SRM-DN 500/PN40/70
DN   600   755.0 50.0 SRM-DN 600/PN6/50
DN   600   755.0 70.0 SRM-DN 600/PN6/70
DN   600   780.0 50.0 SRM-DN 600/PN10/50
DN   600   780.0 70.0 SRM-DN 600/PN10/70
DN   600   840.0 50.0 SRM-DN 600/PN16/50
DN   600   845.0 50.0 SRM-DN 600/PN25/50
DN   700   860.0 50.0 SRM-DN 700/PN6/50
DN   700   860.0 70.0 SRM-DN 700/PN6/70
DN   700   895.0 50.0 SRM-DN 700/PN10/50
DN   700   895.0 70.0 SRM-DN 700/PN10/70
DN   700   910.0 50.0 SRM-DN 700/PN16/50
DN   700   960.0 50.0 SRM-DN 700/PN25/50
DN   800   975.0 50.0 SRM-DN 800/PN6/50
DN   800   975.0 70.0 SRM-DN 800/PN6/70
DN   800 1015.0 50.0 SRM-DN 800/PN10/50
DN   800 1015.0 70.0 SRM-DN 800/PN10/70
DN   800 1025.0 50.0 SRM-DN 800/PN16/50
DN   800 1085.0 50.0 SRM-DN 800/PN25/50
DN   900 1075.0 50.0 SRM-DN 900/PN6/50
DN   900 1075.0 70.0 SRM-DN 900/PN6/70
DN   900 1115.0 50.0 SRM-DN 900/PN10/50
DN   900 1125.0 50.0 SRM-DN 900/PN16/50
DN   900 1185.0 50.0 SRM-DN 900/PN25/50
DN 1000 1175.0 50.0 SRM-DN 1000/PN6/50
DN 1000 1175.0 70.0 SRM-DN 1000/PN6/70
DN 1000 1230.0 50.0 SRM-DN 1000/PN10/50
DN 1000 1255.0 50.0 SRM-DN 1000/PN16/50
DN 1000 1320.0 50.0 SRM-DN 1000/PN25/50
Flange PN
6
PN
10
PN
16
PN
25
PN
40
PN
64
PN
100
B Reference No.
DN     10 50.0 SRM-DN 10/PN6/50
DN     10 50.0 SRM-DN 10/PN10-40/50
DN     10 70.0 SRM-DN 10/PN10-40/70
DN     10 50.0 SRM-DN 10/PN64-100/50
DN     15 50.0 SRM-DN 15/PN6/50
DN     15 50.0 SRM-DN 15/PN10-40/50
DN     15 70.0 SRM-DN 15/PN10-40/70
DN     15 50.0 SRM-DN 15/PN64-100/50
DN     15 70.0 SRM-DN 15/PN64-100/70
DN     20 50.0 SRM-DN 20/PN6/50
DN     20 70.0 SRM-DN 20/PN6/70
DN     20 50.0 SRM-DN 20/PN10-40/50
DN     20 70.0 SRM-DN 20/PN10-40/70
DN     25 50.0 SRM-DN 25/PN6/50
DN     25 50.0 SRM-DN 25/PN10-40/50
DN     25 70.0 SRM-DN 25/PN10-40/70
DN     25 50.0 SRM-DN 25/PN64-100/50
DN     25 70.0 SRM-DN 25/PN64-100/70
DN     32 50.0 SRM-DN 32/PN6/50
DN     32 50.0 SRM-DN 32/PN10-40/50
DN     32 70.0 SRM-DN 32/PN10-40/70
DN     40 50.0 SRM-DN 40/PN6/50
DN     40 50.0 SRM-DN 40/PN10-40/50
DN     40 70.0 SRM-DN 40/PN10-40/70
DN     40 50.0 SRM-DN 40/PN64-100/50
DN     50 50.0 SRM-DN 50/PN6/50
DN     50 70.0 SRM-DN 50/PN6/70
DN     50 50.0 SRM-DN 50/PN10-40/50
DN     50 70.0 SRM-DN 50/PN10-40/70
DN     50 50.0 SRM-DN 50/PN64/50
DN     50 50.0 SRM-DN 50/PN100/50
DN     65 50.0 SRM-DN 65/PN6/50
DN     65 70.0 SRM-DN 65/PN6/70
DN     65 50.0 SRM-DN 65/PN10-40/50
DN     65 70.0 SRM-DN 65/PN10-40/70
DN     65 50.0 SRM-DN 65/PN64/50
DN     65 50.0 SRM-DN 65/PN100/50
DN     65 70.0 SRM-DN 65/PN100/70
DN     80 50.0 SRM-DN 80/PN6/50
DN     80 70.0 SRM-DN 80/PN6/70
DN     80 50.0 SRM-DN 80/PN10-40/50
DN     80 70.0 SRM-DN 80/PN10-40/70
DN     80 50.0 SRM-DN 80/PN64/50
DN     80 50.0 SRM-DN 80/PN100/50
DN   100 50.0 SRM-DN 100/PN6/50
DN   100 70.0 SRM-DN 100/PN6/70
DN   100 50.0 SRM-DN 100/PN10-16/50
DN   100 70.0 SRM-DN 100/PN10-16/70
DN   100 50.0 SRM-DN 100/PN25-40/50
DN   100 70.0 SRM-DN 100/PN25-40/70
DN   100 50.0 SRM-DN 100/PN64/50
DN   100 70.0 SRM-DN 100/PN64/70
DN   100 50.0 SRM-DN 100/PN100/50
DN   100 70.0 SRM-DN 100/PN100/70
DN   125 50.0 SRM-DN 125/PN6/50
DN   125 70.0 SRM-DN 125/PN6/70
DN   125 50.0 SRM-DN 125/PN10-16/50
DN   125 70.0 SRM-DN 125/PN10-16/70
DN   125 50.0 SRM-DN 125/PN25-40/50
DN   125 70.0 SRM-DN 125/PN25-40/70
DN   125 50.0 SRM-DN 125/PN64/50
DN   125 50.0 SRM-DN 125/PN100/50
DN   150 50.0 SRM-DN 150/PN6/50
DN   150 70.0 SRM-DN 150/PN6/70
DN   150 50.0 SRM-DN 150/PN10-16/50
DN   150 70.0 SRM-DN 150/PN10-16/70
DN   150 50.0 SRM-DN 150/PN25-40/50
DN   150 70.0 SRM-DN 150/PN25-40/70
DN   150 50.0 SRM-DN 150/PN64/50
DN   150 50.0 SRM-DN 150/PN100/50
DN   200 50.0 SRM-DN 200/PN6/50
DN   200 70.0 SRM-DN 200/PN6/70
DN   200 50.0 SRM-DN 200/PN10-16/50
DN   200 70.0 SRM-DN 200/PN10-16/70
DN   200 50.0 SRM-DN 200/PN25/50
DN   200 70.0 SRM-DN 200/PN25/70
DN   200 50.0 SRM-DN 200/PN40/50
DN   200 70.0 SRM-DN 200/PN40/70
DN   200 50.0 SRM-DN 200/PN64/50
DN   200 50.0 SRM-DN 200/PN100/50
DN   250 50.0 SRM-DN 250/PN6/50
DN   250 70.0 SRM-DN 250/PN6/70
DN   250 50.0 SRM-DN 250/PN10/50
DN   250 70.0 SRM-DN 250/PN10/70
DN   250 50.0 SRM-DN 250/PN16/50
DN   250 50.0 SRM-DN 250/PN25/50
DN   250 70.0 SRM-DN 250/PN25/70
DN   250 50.0 SRM-DN 250/PN40/50
DN   250 70.0 SRM-DN 250/PN40/70
DN   250 50.0 SRM-DN 250/PN64/50
DN   250 50.0 SRM-DN 250/PN100/50
DN   250 70.0 SRM-DN 250/PN100/70
DN   300 50.0 SRM-DN 300/PN6/50
DN   300 70.0 SRM-DN 300/PN6/70
DN   300 50.0 SRM-DN 300/PN10/50
DN   300 70.0 SRM-DN 300/PN10/70
DN   300 50.0 SRM-DN 300/PN16/50
DN   300 50.0 SRM-DN 300/PN25/50
DN   300 70.0 SRM-DN 300/PN25/70
DN   300 50.0 SRM-DN 300/PN40/50
DN   300 70.0 SRM-DN 300/PN40/70
DN   300 50.0 SRM-DN 300/PN64/50
DN   300 50.0 SRM-DN 300/PN100/50
DN   350 50.0 SRM-DN 350/PN6/50
DN   350 70.0 SRM-DN 350/PN6/70
DN   350 50.0 SRM-DN 350/PN10/50
DN   350 70.0 SRM-DN 350/PN10/70
DN   350 50.0 SRM-DN 350/PN16/50
DN   350 50.0 SRM-DN 350/PN25/50
DN   350 70.0 SRM-DN 350/PN25/70
DN   350 50.0 SRM-DN 350/PN40/50
DN   350 70.0 SRM-DN 350/PN40/70
DN   350 50.0 SRM-DN 350/PN64/50
DN   350 50.0 SRM-DN 350/PN100/50
DN   400 50.0 SRM-DN 400/PN6/50
DN   400 70.0 SRM-DN 400/PN6/70
DN   400 50.0 SRM-DN 400/PN10/50
DN   400 70.0 SRM-DN 400/PN10/70
DN   400 50.0 SRM-DN 400/PN16/50
DN   400 70.0 SRM-DN 400/PN16/70
DN   400 50.0 SRM-DN 400/PN25/50
DN   400 70.0 SRM-DN 400/PN25/70
DN   400 50.0 SRM-DN 400/PN40/50
DN   400 50.0 SRM-DN 400/PN64/50
DN   400 70.0 SRM-DN 400/PN64/70
DN   500 50.0 SRM-DN 500/PN6/50
DN   500 70.0 SRM-DN 500/PN6/70
DN   500 50.0 SRM-DN 500/PN10/50
DN   500 70.0 SRM-DN 500/PN10/70
DN   500 50.0 SRM-DN 500/PN16/50
DN   500 50.0 SRM-DN 500/PN25/50
DN   500 70.0 SRM-DN 500/PN25/70
DN   500 50.0 SRM-DN 500/PN40/50
DN   500 70.0 SRM-DN 500/PN40/70
DN   600 50.0 SRM-DN 600/PN6/50
DN   600 70.0 SRM-DN 600/PN6/70
DN   600 50.0 SRM-DN 600/PN10/50
DN   600 70.0 SRM-DN 600/PN10/70
DN   600 50.0 SRM-DN 600/PN16/50
DN   600 50.0 SRM-DN 600/PN25/50
DN   700 50.0 SRM-DN 700/PN6/50
DN   700 70.0 SRM-DN 700/PN6/70
DN   700 50.0 SRM-DN 700/PN10/50
DN   700 70.0 SRM-DN 700/PN10/70
DN   700 50.0 SRM-DN 700/PN16/50
DN   700 50.0 SRM-DN 700/PN25/50
DN   800 50.0 SRM-DN 800/PN6/50
DN   800 70.0 SRM-DN 800/PN6/70
DN   800 50.0 SRM-DN 800/PN10/50
DN   800 70.0 SRM-DN 800/PN10/70
DN   800 50.0 SRM-DN 800/PN16/50
DN   800 50.0 SRM-DN 800/PN25/50
DN   900 50.0 SRM-DN 900/PN6/50
DN   900 70.0 SRM-DN 900/PN6/70
DN   900 50.0 SRM-DN 900/PN10/50
DN   900 50.0 SRM-DN 900/PN16/50
DN   900 50.0 SRM-DN 900/PN25/50
DN 1000 50.0 SRM-DN 1000/PN6/50
DN 1000 70.0 SRM-DN 1000/PN6/70
DN 1000 50.0 SRM-DN 1000/PN10/50
DN 1000 50.0 SRM-DN 1000/PN16/50
DN 1000 50.0 SRM-DN 1000/PN25/50
Flange
DN 10

PN 6

PN 6
75.0

Ring width B
50.0

Reference No. SRM 3600 / DN 10/PN6/50

Flange
DN 10

PN 10

PN 16

PN 25

PN 40

PN 10
90.0

PN 16
90.0

PN 25
90.0

PN 40
90.0

Ring width B
50.0

Reference No. SRM 3600 / DN 10/PN10-40/50

Flange
DN 10

PN 10

PN 16

PN 25

PN 40

PN 10
90.0

PN 16
90.0

PN 25
90.0

PN 40
90.0

Ring width B
70.0

Reference No. SRM 3600 / DN 10/PN10-40/70

Flange
DN 10

PN 64

PN 100

PN 64
100.0

PN 100
100.0

Ring width B
50.0

Reference No. SRM 3600 / DN 10/PN64-100/50

Flange
DN 15

PN 6

PN 6
80.0

Ring width B
50.0

Reference No. SRM 3600 / DN 15/PN6/50

Flange
DN 15

PN 10

PN 16

PN 25

PN 40

PN 10
95.0

PN 16
95.0

PN 25
95.0

PN 40
95.0

Ring width B
50.0

Reference No. SRM 3600 / DN 15/PN10-40/50

Flange
DN 15

PN 10

PN 16

PN 25

PN 40

PN 10
95.0

PN 16
95.0

PN 25
95.0

PN 40
95.0

Ring width B
70.0

Reference No. SRM 3600 / DN 15/PN10-40/70

Flange
DN 15

PN 64

PN 100

PN 64
105.0

PN 100
105.0

Ring width B
50.0

Reference No. SRM 3600 / DN 15/PN64-100/50

Flange
DN 15

PN 64

PN 100

PN 64
105.0

PN 100
105.0

Ring width B
70.0

Reference No. SRM 3600 / DN 15/PN64-100/70

Flange
DN 20

PN 6

PN 6
90.0

Ring width B
50.0

Reference No. SRM 3600 / DN 20/PN6/50

Flange
DN 20

PN 6

PN 6
90.0

Ring width B
70.0

Reference No. SRM 3600 / DN 20/PN6/70

Flange
DN 20

PN 10

PN 16

PN 25

PN 40

PN 10
105.0

PN 16
105.0

PN 25
105.0

PN 40
105.0

Ring width B
50.0

Reference No. SRM 3600 / DN 20/PN10-40/50

Flange
DN 20

PN 10

PN 16

PN 25

PN 40

PN 10
105.0

PN 16
105.0

PN 25
105.0

PN 40
105.0

Ring width B
70.0

Reference No. SRM 3600 / DN 20/PN10-40/70

Flange
DN 25

PN 6

PN 6
100.0

Ring width B
50.0

Reference No. SRM 3600 / DN 25/PN6/50

Flange
DN 25

PN 10

PN 16

PN 25

PN 40

PN 10
115.0

PN 16
115.0

PN 25
115.0

PN 40
115.0

Ring width B
50.0

Reference No. SRM 3600 / DN 25/PN10-40/50

Flange
DN 25

PN 10

PN 16

PN 25

PN 40

PN 10
115.0

PN 16
115.0

PN 25
115.0

PN 40
115.0

Ring width B
70.0

Reference No. SRM 3600 / DN 25/PN10-40/70

Flange
DN 25

PN 64

PN 100

PN 64
140.0

PN 100
140.0

Ring width B
50.0

Reference No. SRM 3600 / DN 25/PN64-100/50

Flange
DN 25

PN 64

PN 100

PN 64
140.0

PN 100
140.0

Ring width B
70.0

Reference No. SRM 3600 / DN 25/PN64-100/70

Flange
DN 32

PN 6

PN 6
120.0

Ring width B
50.0

Reference No. SRM 3600 / DN 32/PN6/50

Flange
DN 32

PN 10

PN 16

PN 25

PN 40

PN 10
140.0

PN 16
140.0

PN 25
140.0

PN 40
140.0

Ring width B
50.0

Reference No. SRM 3600 / DN 32/PN10-40/50

Flange
DN 32

PN 10

PN 16

PN 25

PN 40

PN 10
140.0

PN 16
140.0

PN 25
140.0

PN 40
140.0

Ring width B
70.0

Reference No. SRM 3600 / DN 32/PN10-40/70

Flange
DN 40

PN 6

PN 6
130.0

Ring width B
50.0

Reference No. SRM 3600 / DN 40/PN6/50

Flange
DN 40

PN 10

PN 16

PN 25

PN 40

PN 10
150.0

PN 16
150.0

PN 25
150.0

PN 40
150.0

Ring width B
50.0

Reference No. SRM 3600 / DN 40/PN10-40/50

Flange
DN 40

PN 10

PN 16

PN 25

PN 40

PN 10
150.0

PN 16
150.0

PN 25
150.0

PN 40
150.0

Ring width B
70.0

Reference No. SRM 3600 / DN 40/PN10-40/70

Flange
DN 40

PN 64

PN 100

PN 64
170.0

PN 100
170.0

Ring width B
50.0

Reference No. SRM 3600 / DN 40/PN64-100/50

Flange
DN 50

PN 6

PN 6
140.0

Ring width B
50.0

Reference No. SRM 3600 / DN 50/PN6/50

Flange
DN 50

PN 6

PN 6
140.0

Ring width B
70.0

Reference No. SRM 3600 / DN 50/PN6/70

Flange
DN 50

PN 10

PN 16

PN 25

PN 40

PN 10
165.0

PN 16
165.0

PN 25
165.0

PN 40
165.0

Ring width B
50.0

Reference No. SRM 3600 / DN 50/PN10-40/50

Flange
DN 50

PN 10

PN 16

PN 25

PN 40

PN 10
165.0

PN 16
165.0

PN 25
165.0

PN 40
165.0

Ring width B
70.0

Reference No. SRM 3600 / DN 50/PN10-40/70

Flange
DN 50

PN 64

PN 64
180.0

Ring width B
50.0

Reference No. SRM 3600 / DN 50/PN64/50

Flange
DN 50

PN 100

PN 100
195.0

Ring width B
50.0

Reference No. SRM 3600 / DN 50/PN100/50

Flange
DN 65

PN 6

PN 6
160.0

Ring width B
50.0

Reference No. SRM 3600 / DN 65/PN6/50

Flange
DN 65

PN 6

PN 6
160.0

Ring width B
70.0

Reference No. SRM 3600 / DN 65/PN6/70

Flange
DN 65

PN 10

PN 16

PN 25

PN 40

PN 10
185.0

PN 16
185.0

PN 25
185.0

PN 40
185.0

Ring width B
50.0

Reference No. SRM 3600 / DN 65/PN10-40/50

Flange
DN 65

PN 10

PN 16

PN 25

PN 40

PN 10
185.0

PN 16
185.0

PN 25
185.0

PN 40
185.0

Ring width B
70.0

Reference No. SRM 3600 / DN 65/PN10-40/70

Flange
DN 65

PN 64

PN 64
205.0

Ring width B
50.0

Reference No. SRM 3600 / DN 65/PN64/50

Flange
DN 65

PN 100

PN 100
220.0

Ring width B
50.0

Reference No. SRM 3600 / DN 65/PN100/50

Flange
DN 65

PN 100

PN 100
220.0

Ring width B
70.0

Reference No. SRM 3600 / DN 65/PN100/70

Flange
DN 80

PN 6

PN 6
190.0

Ring width B
50.0

Reference No. SRM 3600 / DN 80/PN6/50

Flange
DN 80

PN 6

PN 6
190.0

Ring width B
70.0

Reference No. SRM 3600 / DN 80/PN6/70

Flange
DN 80

PN 10

PN 16

PN 25

PN 40

PN 10
200.0

PN 16
200.0

PN 25
200.0

PN 40
200.0

Ring width B
50.0

Reference No. SRM 3600 / DN 80/PN10-40/50

Flange
DN 80

PN 10

PN 16

PN 25

PN 40

PN 10
200.0

PN 16
200.0

PN 25
200.0

PN 40
200.0

Ring width B
70.0

Reference No. SRM 3600 / DN 80/PN10-40/70

Flange
DN 80

PN 64

PN 64
215.0

Ring width B
50.0

Reference No. SRM 3600 / DN 80/PN64/50

Flange
DN 80

PN 100

PN 100
230.0

Ring width B
50.0

Reference No. SRM 3600 / DN 80/PN100/50

Flange
DN 100

PN 6

PN 6
210.0

Ring width B
50.0

Reference No. SRM 3600 / DN 100/PN6/50

Flange
DN 100

PN 6

PN 6
210.0

Ring width B
70.0

Reference No. SRM 3600 / DN 100/PN6/70

Flange
DN 100

PN 10

PN 16

PN 10
200.0

PN 16
200.0

Ring width B
50.0

Reference No. SRM 3600 / DN 100/PN10-16/50

Flange
DN 100

PN 10

PN 16

PN 10
200.0

PN 16
200.0

Ring width B
70.0

Reference No. SRM 3600 / DN 100/PN10-16/70

Flange
DN 100

PN 25

PN 40

PN 25
235.0

PN 40
235.0

Ring width B
50.0

Reference No. SRM 3600 / DN 100/PN25-40/50

Flange
DN 100

PN 25

PN 40

PN 25
235.0

PN 40
235.0

Ring width B
70.0

Reference No. SRM 3600 / DN 100/PN25-40/70

Flange
DN 100

PN 64

PN 64
250.0

Ring width B
50.0

Reference No. SRM 3600 / DN 100/PN64/50

Flange
DN 100

PN 64

PN 64
250.0

Ring width B
70.0

Reference No. SRM 3600 / DN 100/PN64/70

Flange
DN 100

PN 100

PN 100
265.0

Ring width B
50.0

Reference No. SRM 3600 / DN 100/PN100/50

Flange
DN 100

PN 100

PN 100
265.0

Ring width B
70.0

Reference No. SRM 3600 / DN 100/PN100/70

Flange
DN 125

PN 6

PN 6
240.0

Ring width B
50.0

Reference No. SRM 3600 / DN 125/PN6/50

Flange
DN 125

PN 6

PN 6
240.0

Ring width B
70.0

Reference No. SRM 3600 / DN 125/PN6/70

Flange
DN 125

PN 10

PN 16

PN 10
250.0

PN 16
250.0

Ring width B
50.0

Reference No. SRM 3600 / DN 125/PN10-16/50

Flange
DN 125

PN 10

PN 16

PN 10
250.0

PN 16
250.0

Ring width B
70.0

Reference No. SRM 3600 / DN 125/PN10-16/70

Flange
DN 125

PN 25

PN 40

PN 25
270.0

PN 40
270.0

Ring width B
50.0

Reference No. SRM 3600 / DN 125/PN25-40/50

Flange
DN 125

PN 25

PN 40

PN 25
270.0

PN 40
270.0

Ring width B
70.0

Reference No. SRM 3600 / DN 125/PN25-40/70

Flange
DN 125

PN 64

PN 64
295.0

Ring width B
50.0

Reference No. SRM 3600 / DN 125/PN64/50

Flange
DN 125

PN 100

PN 100
315.0

Ring width B
50.0

Reference No. SRM 3600 / DN 125/PN100/50

Flange
DN 150

PN 6

PN 6
265.0

Ring width B
50.0

Reference No. SRM 3600 / DN 150/PN6/50

Flange
DN 150

PN 6

PN 6
265.0

Ring width B
70.0

Reference No. SRM 3600 / DN 150/PN6/70

Flange
DN 150

PN 10

PN 16

PN 10
285.0

PN 16
285.0

Ring width B
50.0

Reference No. SRM 3600 / DN 150/PN10-16/50

Flange
DN 150

PN 10

PN 16

PN 10
285.0

PN 16
285.0

Ring width B
70.0

Reference No. SRM 3600 / DN 150/PN10-16/70

Flange
DN 150

PN 25

PN 40

PN 25
300.0

PN 40
300.0

Ring width B
50.0

Reference No. SRM 3600 / DN 150/PN25-40/50

Flange
DN 150

PN 25

PN 40

PN 25
300.0

PN 40
300.0

Ring width B
70.0

Reference No. SRM 3600 / DN 150/PN25-40/70

Flange
DN 150

PN 64

PN 64
345.0

Ring width B
50.0

Reference No. SRM 3600 / DN 150/PN64/50

Flange
DN 150

PN 100

PN 100
355.0

Ring width B
50.0

Reference No. SRM 3600 / DN 150/PN100/50

Flange
DN 200

PN 6

PN 6
320.0

Ring width B
50.0

Reference No. SRM 3600 / DN 200/PN6/50

Flange
DN 200

PN 6

PN 6
320.0

Ring width B
70.0

Reference No. SRM 3600 / DN 200/PN6/70

Flange
DN 200

PN 10

PN 16

PN 10
340.0

PN 16
340.0

Ring width B
50.0

Reference No. SRM 3600 / DN 200/PN10-16/50

Flange
DN 200

PN 10

PN 16

PN 10
340.0

PN 16
340.0

Ring width B
70.0

Reference No. SRM 3600 / DN 200/PN10-16/70

Flange
DN 200

PN 25

PN 25
360.0

Ring width B
50.0

Reference No. SRM 3600 / DN 200/PN25/50

Flange
DN 200

PN 25

PN 25
360.0

Ring width B
70.0

Reference No. SRM 3600 / DN 200/PN25/70

Flange
DN 200

PN 40

PN 40
375.0

Ring width B
50.0

Reference No. SRM 3600 / DN 200/PN40/50

Flange
DN 200

PN 40

PN 40
375.0

Ring width B
70.0

Reference No. SRM 3600 / DN 200/PN40/70

Flange
DN 200

PN 64

PN 64
415.0

Ring width B
50.0

Reference No. SRM 3600 / DN 200/PN64/50

Flange
DN 200

PN 100

PN 100
430.0

Ring width B
50.0

Reference No. SRM 3600 / DN 200/PN100/50

Flange
DN 250

PN 6

PN 6
375.0

Ring width B
50.0

Reference No. SRM 3600 / DN 250/PN6/50

Flange
DN 250

PN 6

PN 6
375.0

Ring width B
70.0

Reference No. SRM 3600 / DN 250/PN6/70

Flange
DN 250

PN 10

PN 10
395.0

Ring width B
50.0

Reference No. SRM 3600 / DN 250/PN10/50

Flange
DN 250

PN 10

PN 10
395.0

Ring width B
70.0

Reference No. SRM 3600 / DN 250/PN10/70

Flange
DN 250

PN 16

PN 16
405.0

Ring width B
50.0

Reference No. SRM 3600 / DN 250/PN16/50

Flange
DN 250

PN 25

PN 25
425.0

Ring width B
50.0

Reference No. SRM 3600 / DN 250/PN25/50

Flange
DN 250

PN 25

PN 25
425.0

Ring width B
70.0

Reference No. SRM 3600 / DN 250/PN25/70

Flange
DN 250

PN 40

PN 40
450.0

Ring width B
50.0

Reference No. SRM 3600 / DN 250/PN40/50

Flange
DN 250

PN 40

PN 40
450.0

Ring width B
70.0

Reference No. SRM 3600 / DN 250/PN40/70

Flange
DN 250

PN 64

PN 64
470.0

Ring width B
50.0

Reference No. SRM 3600 / DN 250/PN64/50

Flange
DN 250

PN 100

PN 100
505.0

Ring width B
50.0

Reference No. SRM 3600 / DN 250/PN100/50

Flange
DN 250

PN 100

PN 100
505.0

Ring width B
70.0

Reference No. SRM 3600 / DN 250/PN100/70

Flange
DN 300

PN 6

PN 6
440.0

Ring width B
50.0

Reference No. SRM 3600 / DN 300/PN6/50

Flange
DN 300

PN 6

PN 6
440.0

Ring width B
70.0

Reference No. SRM 3600 / DN 300/PN6/70

Flange
DN 300

PN 10

PN 10
445.0

Ring width B
50.0

Reference No. SRM 3600 / DN 300/PN10/50

Flange
DN 300

PN 10

PN 10
445.0

Ring width B
70.0

Reference No. SRM 3600 / DN 300/PN10/70

Flange
DN 300

PN 16

PN 16
460.0

Ring width B
50.0

Reference No. SRM 3600 / DN 300/PN16/50

Flange
DN 300

PN 25

PN 25
485.0

Ring width B
50.0

Reference No. SRM 3600 / DN 300/PN25/50

Flange
DN 300

PN 25

PN 25
485.0

Ring width B
70.0

Reference No. SRM 3600 / DN 300/PN25/70

Flange
DN 300

PN 40

PN 40
515.0

Ring width B
50.0

Reference No. SRM 3600 / DN 300/PN40/50

Flange
DN 300

PN 40

PN 40
515.0

Ring width B
70.0

Reference No. SRM 3600 / DN 300/PN40/70

Flange
DN 300

PN 64

PN 64
530.0

Ring width B
50.0

Reference No. SRM 3600 / DN 300/PN64/50

Flange
DN 300

PN 100

PN 100
585.0

Ring width B
50.0

Reference No. SRM 3600 / DN 300/PN100/50

Flange
DN 350

PN 6

PN 6
490.0

Ring width B
50.0

Reference No. SRM 3600 / DN 350/PN6/50

Flange
DN 350

PN 6

PN 6
490.0

Ring width B
70.0

Reference No. SRM 3600 / DN 350/PN6/70

Flange
DN 350

PN 10

PN 10
505.0

Ring width B
50.0

Reference No. SRM 3600 / DN 350/PN10/50

Flange
DN 350

PN 10

PN 10
505.0

Ring width B
70.0

Reference No. SRM 3600 / DN 350/PN10/70

Flange
DN 350

PN 16

PN 16
520.0

Ring width B
50.0

Reference No. SRM 3600 / DN 350/PN16/50

Flange
DN 350

PN 25

PN 25
555.0

Ring width B
50.0

Reference No. SRM 3600 / DN 350/PN25/50

Flange
DN 350

PN 25

PN 25
555.0

Ring width B
70.0

Reference No. SRM 3600 / DN 350/PN25/70

Flange
DN 350

PN 40

PN 40
580.0

Ring width B
50.0

Reference No. SRM 3600 / DN 350/PN40/50

Flange
DN 350

PN 40

PN 40
580.0

Ring width B
70.0

Reference No. SRM 3600 / DN 350/PN40/70

Flange
DN 350

PN 64

PN 64
600.0

Ring width B
50.0

Reference No. SRM 3600 / DN 350/PN64/50

Flange
DN 350

PN 100

PN 100
655.0

Ring width B
50.0

Reference No. SRM 3600 / DN 350/PN100/50

Flange
DN 400

PN 6

PN 6
540.0

Ring width B
50.0

Reference No. SRM 3600 / DN 400/PN6/50

Flange
DN 400

PN 6

PN 6
540.0

Ring width B
70.0

Reference No. SRM 3600 / DN 400/PN6/70

Flange
DN 400

PN 10

PN 10
565.0

Ring width B
50.0

Reference No. SRM 3600 / DN 400/PN10/50

Flange
DN 400

PN 10

PN 10
565.0

Ring width B
70.0

Reference No. SRM 3600 / DN 400/PN10/70

Flange
DN 400

PN 16

PN 16
580.0

Ring width B
50.0

Reference No. SRM 3600 / DN 400/PN16/50

Flange
DN 400

PN 16

PN 16
580.0

Ring width B
70.0

Reference No. SRM 3600 / DN 400/PN16/70

Flange
DN 400

PN 25

PN 25
620.0

Ring width B
50.0

Reference No. SRM 3600 / DN 400/PN25/50

Flange
DN 400

PN 25

PN 25
620.0

Ring width B
70.0

Reference No. SRM 3600 / DN 400/PN25/70

Flange
DN 400

PN 40

PN 40
660.0

Ring width B
50.0

Reference No. SRM 3600 / DN 400/PN40/50

Flange
DN 400

PN 64

PN 64
670.0

Ring width B
50.0

Reference No. SRM 3600 / DN 400/PN64/50

Flange
DN 400

PN 64

PN 64
670.0

Ring width B
70.0

Reference No. SRM 3600 / DN 400/PN64/70

Flange
DN 500

PN 6

PN 6
645.0

Ring width B
50.0

Reference No. SRM 3600 / DN 500/PN6/50

Flange
DN 500

PN 6

PN 6
645.0

Ring width B
70.0

Reference No. SRM 3600 / DN 500/PN6/70

Flange
DN 500

PN 10

PN 10
670.0

Ring width B
50.0

Reference No. SRM 3600 / DN 500/PN10/50

Flange
DN 500

PN 10

PN 10
670.0

Ring width B
70.0

Reference No. SRM 3600 / DN 500/PN10/70

Flange
DN 500

PN 16

PN 16
715.0

Ring width B
50.0

Reference No. SRM 3600 / DN 500/PN16/50

Flange
DN 500

PN 25

PN 25
730.0

Ring width B
50.0

Reference No. SRM 3600 / DN 500/PN25/50

Flange
DN 500

PN 25

PN 25
730.0

Ring width B
70.0

Reference No. SRM 3600 / DN 500/PN25/70

Flange
DN 500

PN 40

PN 40
755.0

Ring width B
50.0

Reference No. SRM 3600 / DN 500/PN40/50

Flange
DN 500

PN 40

PN 40
755.0

Ring width B
70.0

Reference No. SRM 3600 / DN 500/PN40/70

Flange
DN 600

PN 6

PN 6
755.0

Ring width B
50.0

Reference No. SRM 3600 / DN 600/PN6/50

Flange
DN 600

PN 6

PN 6
755.0

Ring width B
70.0

Reference No. SRM 3600 / DN 600/PN6/70

Flange
DN 600

PN 10

PN 10
780.0

Ring width B
50.0

Reference No. SRM 3600 / DN 600/PN10/50

Flange
DN 600

PN 10

PN 10
780.0

Ring width B
70.0

Reference No. SRM 3600 / DN 600/PN10/70

Flange
DN 600

PN 16

PN 16
840.0

Ring width B
50.0

Reference No. SRM 3600 / DN 600/PN16/50

Flange
DN 600

PN 25

PN 25
845.0

Ring width B
50.0

Reference No. SRM 3600 / DN 600/PN25/50

Flange
DN 700

PN 6

PN 6
860.0

Ring width B
50.0

Reference No. SRM 3600 / DN 700/PN6/50

Flange
DN 700

PN 6

PN 6
860.0

Ring width B
70.0

Reference No. SRM 3600 / DN 700/PN6/70

Flange
DN 700

PN 10

PN 10
895.0

Ring width B
50.0

Reference No. SRM 3600 / DN 700/PN10/50

Flange
DN 700

PN 10

PN 10
895.0

Ring width B
70.0

Reference No. SRM 3600 / DN 700/PN10/70

Flange
DN 700

PN 16

PN 16
910.0

Ring width B
50.0

Reference No. SRM 3600 / DN 700/PN16/50

Flange
DN 700

PN 25

PN 25
960.0

Ring width B
50.0

Reference No. SRM 3600 / DN 700/PN25/50

Flange
DN 800

PN 6

PN 6
975.0

Ring width B
50.0

Reference No. SRM 3600 / DN 800/PN6/50

Flange
DN 800

PN 6

PN 6
975.0

Ring width B
70.0

Reference No. SRM 3600 / DN 800/PN6/70

Flange
DN 800

PN 10

PN 10
1015.0

Ring width B
50.0

Reference No. SRM 3600 / DN 800/PN10/50

Flange
DN 800

PN 10

PN 10
1015.0

Ring width B
70.0

Reference No. SRM 3600 / DN 800/PN10/70

Flange
DN 800

PN 16

PN 16
1025.0

Ring width B
50.0

Reference No. SRM 3600 / DN 800/PN16/50

Flange
DN 800

PN 25

PN 25
1085.0

Ring width B
50.0

Reference No. SRM 3600 / DN 800/PN25/50

Flange
DN 900

PN 6

PN 6
1075.0

Ring width B
50.0

Reference No. SRM 3600 / DN 900/PN6/50

Flange
DN 900

PN 6

PN 6
1075.0

Ring width B
70.0

Reference No. SRM 3600 / DN 900/PN6/70

Flange
DN 900

PN 10

PN 10
1115.0

Ring width B
50.0

Reference No. SRM 3600 / DN 900/PN10/50

Flange
DN 900

PN 16

PN 16
1125.0

Ring width B
50.0

Reference No. SRM 3600 / DN 900/PN16/50

Flange
DN 900

PN 25

PN 25
1185.0

Ring width B
50.0

Reference No. SRM 3600 / DN 900/PN25/50

Flange
DN 1000

PN 6

PN 6
1175.0

Ring width B
50.0

Reference No. SRM 3600 / DN 1000/PN6/50

Flange
DN 1000

PN 6

PN 6
1175.0

Ring width B
70.0

Reference No. SRM 3600 / DN 1000/PN6/70

Flange
DN 1000

PN 10

PN 10
1230.0

Ring width B
50.0

Reference No. SRM 3600 / DN 1000/PN10/50

Flange
DN 1000

PN 16

PN 16
1255.0

Ring width B
50.0

Reference No. SRM 3600 / DN 1000/PN16/50

Flange
DN 1000

PN 25

PN 25
1320.0

Ring width B
50.0

Reference No. SRM 3600 / DN 1000/PN25/50

PROTEC products and specifications are subject to improvement and change without notice.

DURA-SAFE® SRM 3600D Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.


You will finde more details on how we protect you data during the chat session in our privacy policy.

You might also be interested in these PROTEC series

CAPTOP® EP 304 - 150

Stud hole fitting flange pro-tectors

CAPTOP® EP 304 - 300

Stud hole fitting flange pro-tectors

CAPTOP® EP 306

Push-in flange face protectors

CAPTOP® EP 303

Valve flange protection plugs

Certified production & quality management

PROTEC meets the most stringent demands of safety and operations reliability. International approvals and certifications such as UL, CSA, VDE, VDA 6.1 and DIN EN ISO 9001: 2015 demonstrate total quality commitment on superior level.

Be the first to know - Join our newsletter!

Stay on top of the latest news and upcoming events and event information from PROTEC and its partner. Be the first to know when new products are on the market. Get periodic specials and news delivered directly to your email inbox! You can un-subscribe anytime.

Sign our free newsletter now

Imprint | Contact form | Privacy policy | Jobs at PROTEC | Certifications

copyright (c) 2024 PROTEC PLASTICS THE CAP COMPANY LTD
